O P E R A T I O N C H A P T E R 1 0

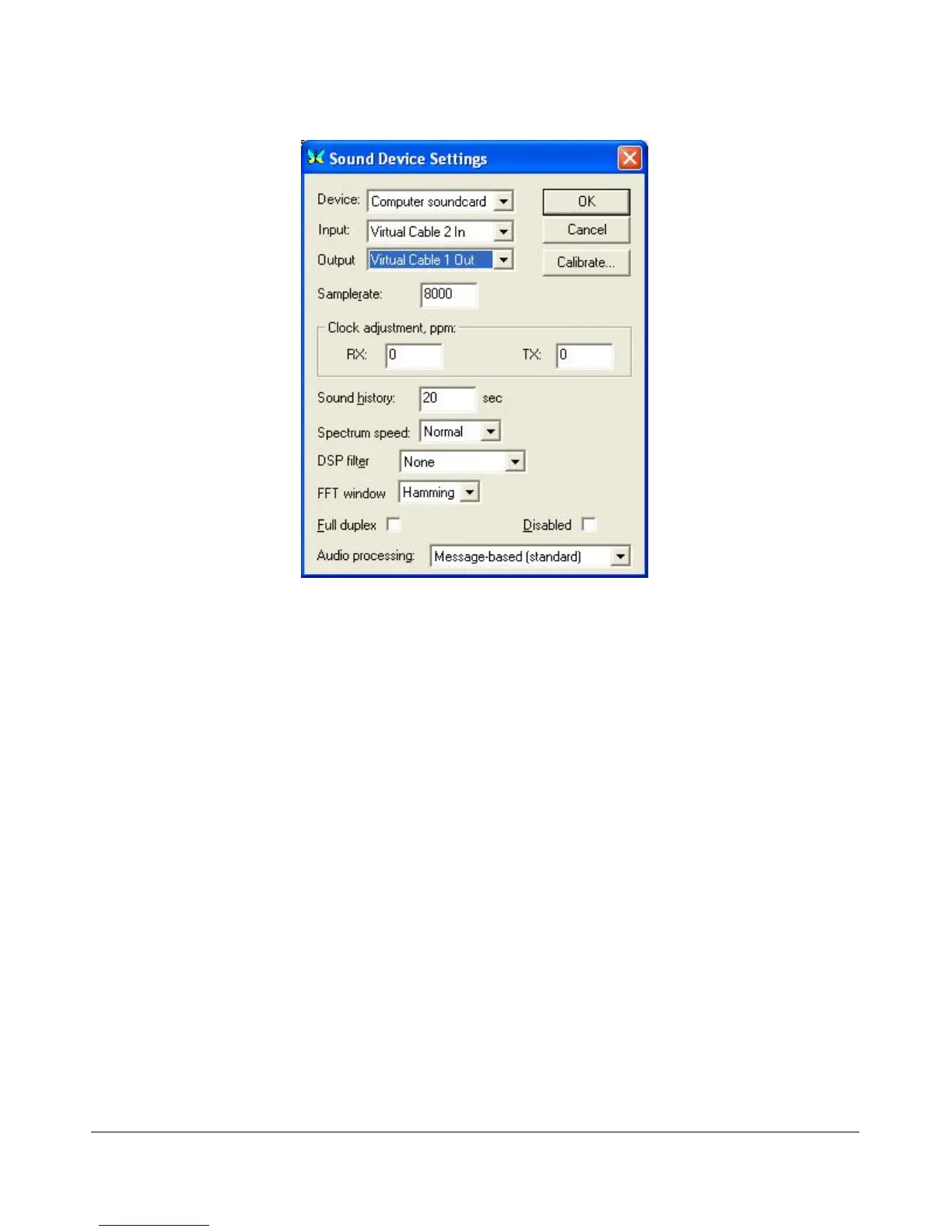

Figure 155: MixW Sound Device Settings
Recall that we previously created 2 virtual audio cables and then configured the PowerSDR VAC Input as
Virtual Cable 1 In and Output as Virtual Cable 2 Out.
We now need to connect MixW to the other ends of those two virtual audio cables respectively. Therefore,
set Device to Computer sound card, Input to Virtual Cable 2 In and Output to Virtual Cable 1 Out as
shown above. If you change the Samplerate setting, MixW will tell you to exit and restart MixW.
Exit MixW for now so we can illustrate the functioning of the virtual audio cables.
Click the Standby/On button to turn PowerSDR on. When you do, the Virtual Audio Cable Control Panel
should look like this:
[The rest of this page has been left blank intentionally]
162 FlexRadio Systems
