FLIGHT DESIGN CT2K - KA4010100 Nose Wheel Rotation Unit

To Next Page

To Previous Page

Chapter 4: Landing Gear

106

Part Number Description

Q-ty per

ASSY

Unit

KA4010101 Pin 1 pcs

KA4010141_2 Pin 1 pcs

C9997702A Compression Spring 5,50x22,50x136,0 1 pcs

C9996336 Self-locking nut DIN 985-M8, regular 1 pcs

C9996567 Washer DIN9021-8.4mmVZ 2 pcs

C9997730P O-Ring 1/2”X8mm 2 psc

C9997730F O-Ring Simrit72,NBR 872,28,Ox5,0 2 psc

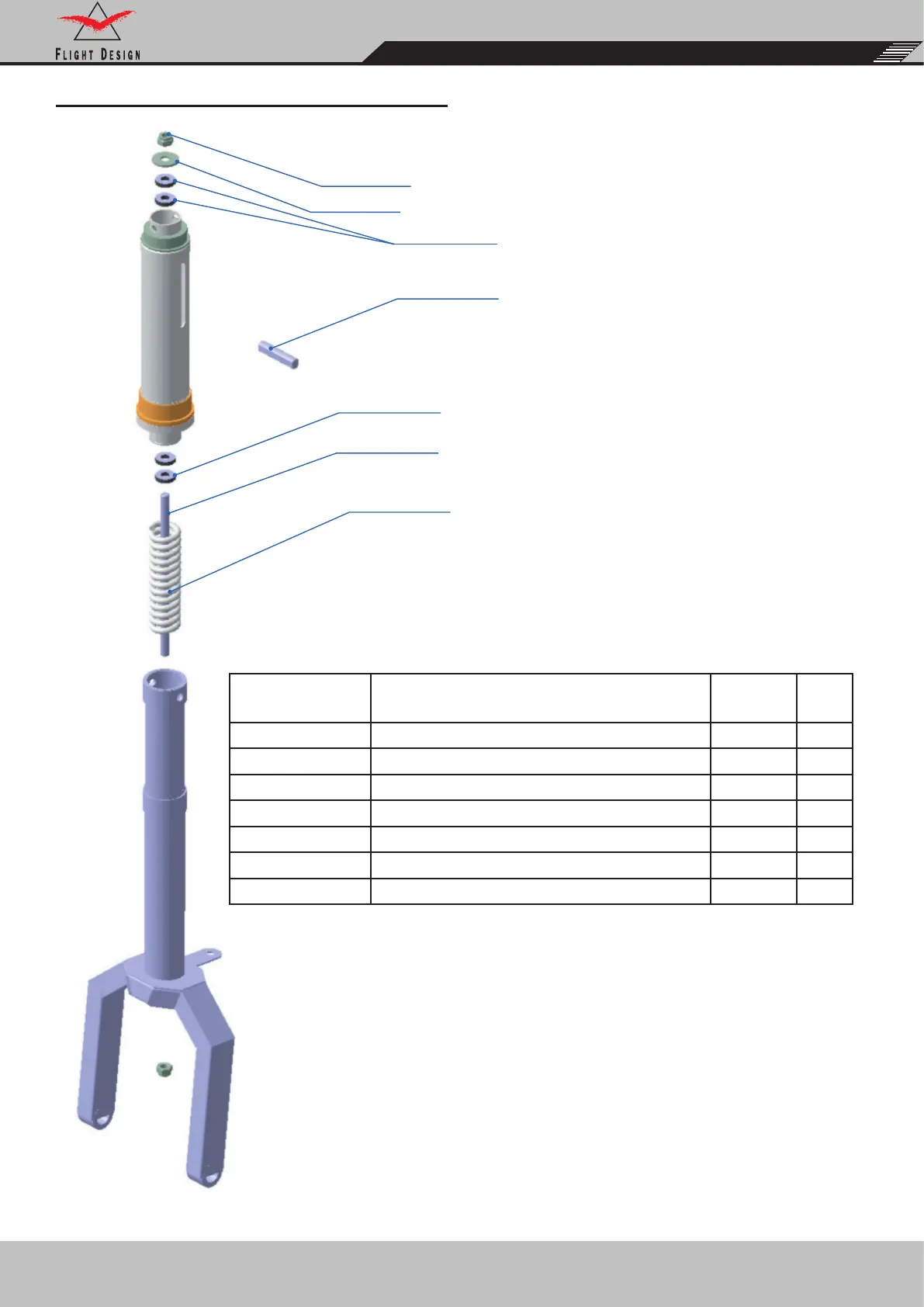

KA4010100 NOSE WHEEL ROTATION UNIT_1

KA4010101

C9997730P

C9996336

C9996567

C9997702A

KA4010141_2

C9997730P
