FLIGHT DESIGN CT2K - KA1090000

To Next Page

To Previous Page

Chapter 1: Fuselage

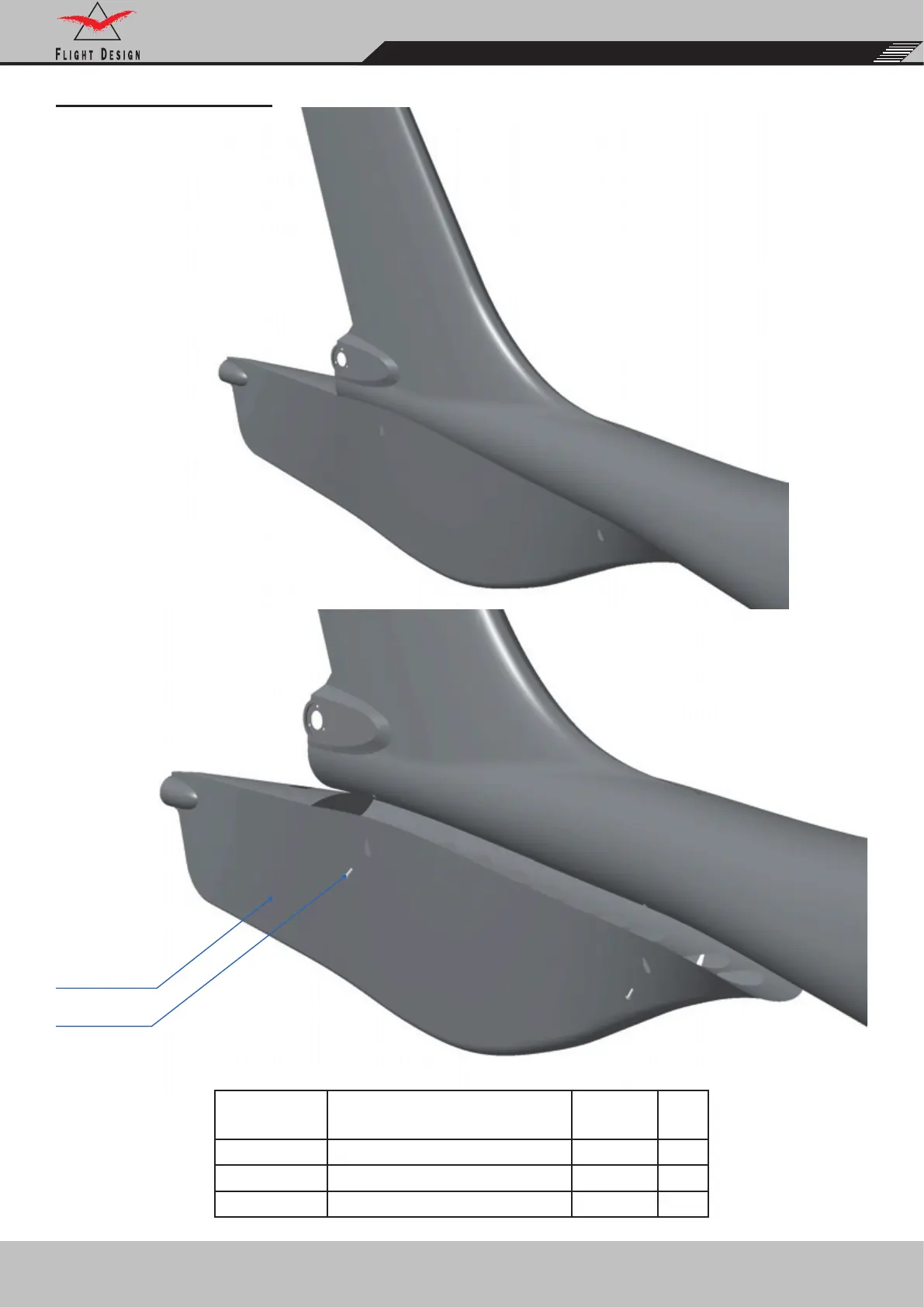

KA1090000 - UNDERFIN

Part

Number

Description

Q-ty per

ASSY

Unit

KU1090000 Underﬁn 1 pcs

KA1090000 Underﬁn 1 pcs

C9996162 Screw ISO 7380 M5x16 4 pcs

KA1090000

C9996162

KU1090000
