FLIGHT DESIGN CT2K - C9997793

To Next Page

To Previous Page

Chapter 7: Systems

308

Part

Number

Description

Q-ty per

ASSY

Unit

C9997793 Fuel Filter WK 31/5 1 pcs

C9997715H Clamp 14 mm 2 pcs

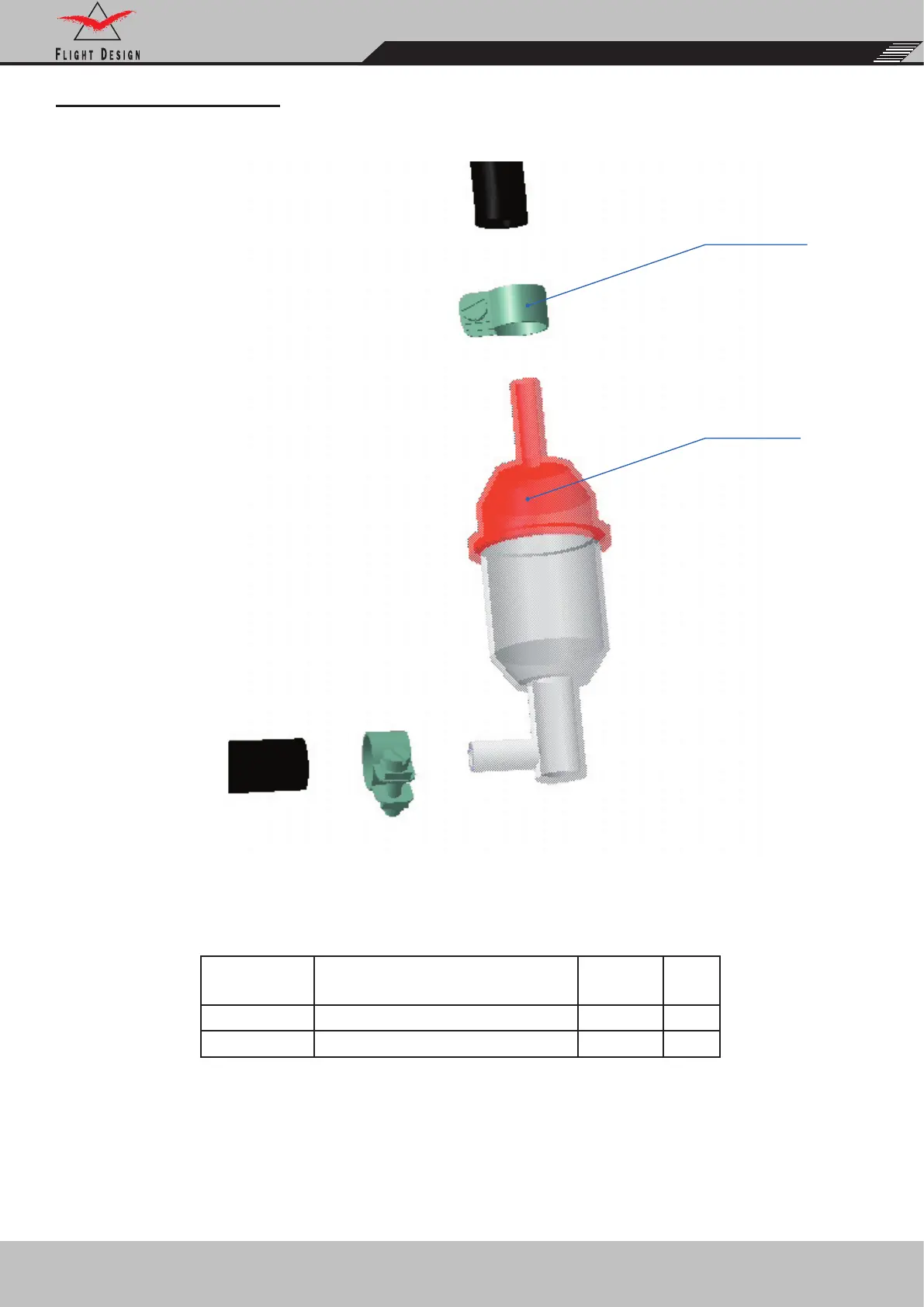

C9997793 - FUEL FILTER

C9997793

C9997715H
