FLIGHT DESIGN CT2K - Seat Pivots Installation

To Next Page

To Previous Page

Chapter 1: Fuselage

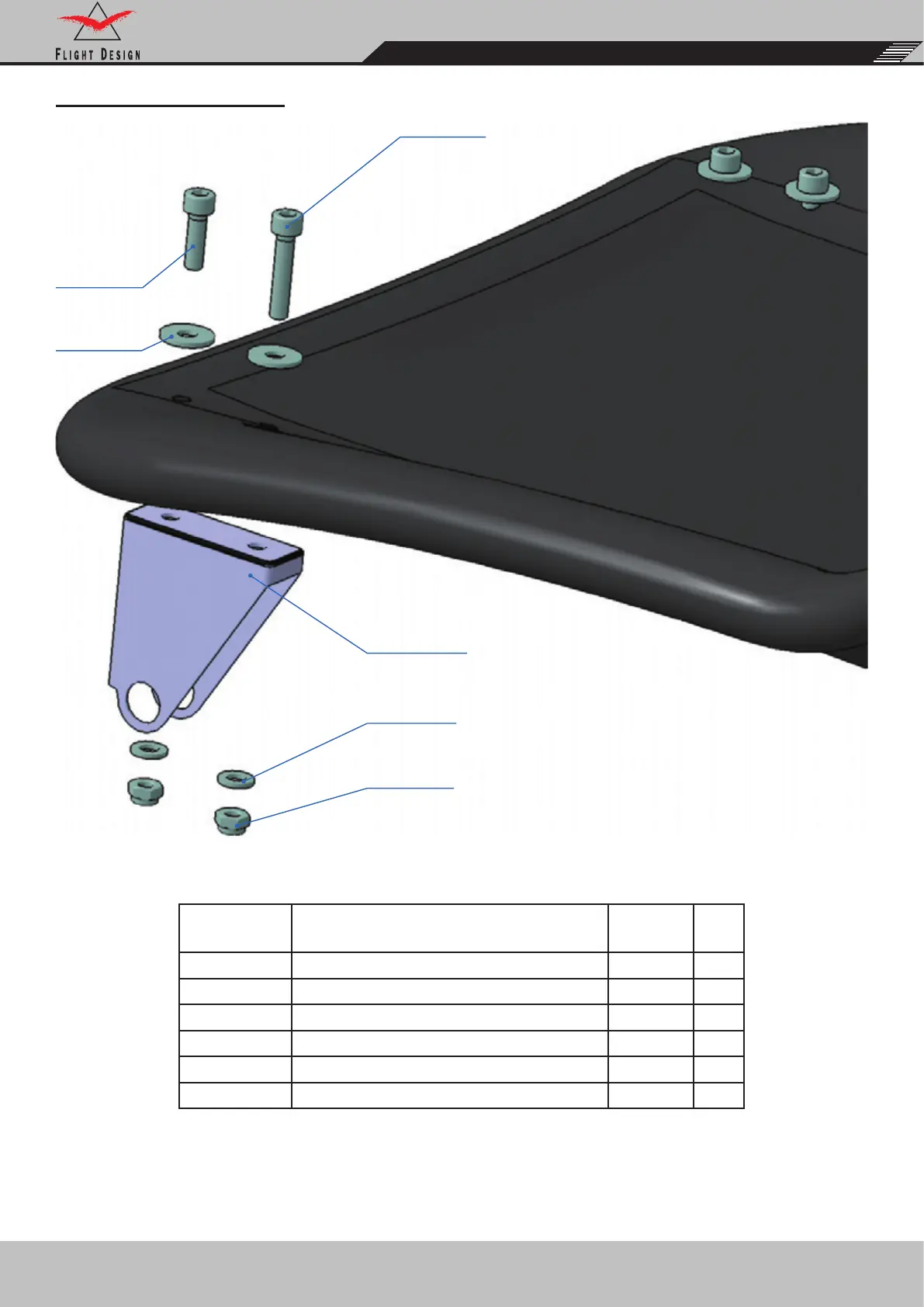

SEAT PIVOTS INSTALLATION

Part

Number

Description

Q-ty per

ASSY

Unit

KA1060110

Pivot assembling 1 pcs

C9996057 Bolt DIN 912 M6x20-8.8 1 pcs

C9996058 Bolt DIN 912 M6x25-8.8 1 pcs

C9996334 Self-locking nut DIN 985-M6, regular 2 pcs

C9996504 Washer DIN 125 A2B-6.4mm 2 pcs

C9996565 Washer DIN 9021-6.4mm VZ 2 pcs

KA1060110

C9996057

C9996058

C9996334

C9996504

C9996565
