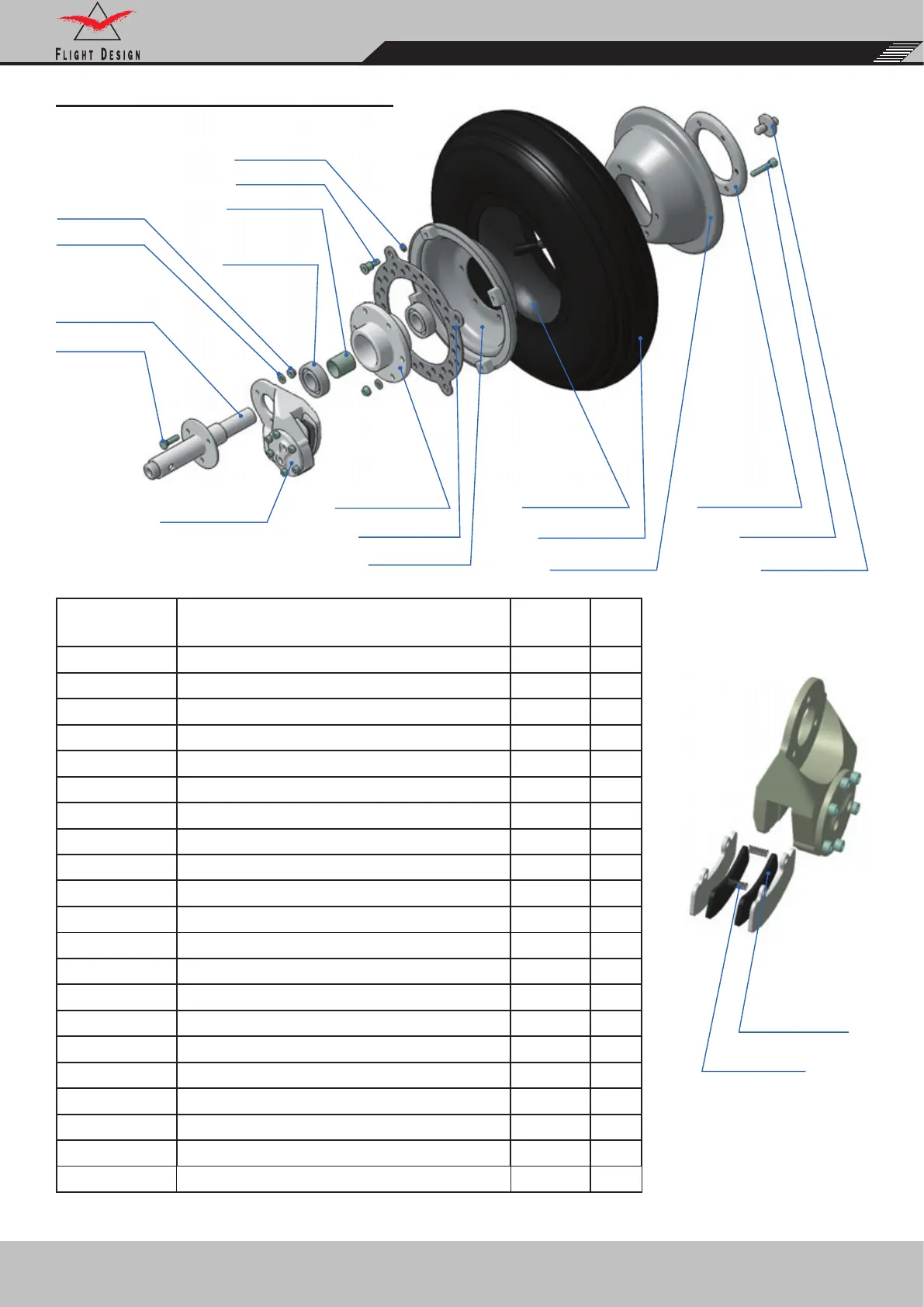

KA4020500 - MAIN WHEEL ASSEMBLY
KA4020503
C9996058
C9997205Y
C9997205W
C9996509
C9997205I
KA4020502
KA7030003
C9997205X
C9996504
C9996334
C9997205U
KA4020510
C9996284B
Part
Number
Description
Q-ty per
ASSY
Unit
KA7030003 Brake disk 1 pcs
KA4020502 Distance bushing 1 pcs
KA4020503 Bolt 1 pcs
KA4020510 Main wheel axis 1 pcs
C9996058 Bolt DIN 912 M6x25-8.8 6 pcs
C9996284B Bolt DIN 933 M6x20-8.8 3 pcs
C9996334 Self-locking nut DIN 985-M6, regular 9 pcs
C9996503 Washer DIN 125 A2-5.3mm 6 pcs
C9996504 Washer DIN 125 A2B-6.4mm 9 pcs
C9996509 Spring washer DIN7980 M6 mm VZ 4 pcs
C9997030B Bearing 6004-2Z 2 pcs
C9997206X Tube Sava, 4.00-6 38G11.5, 6 ply 1 pcs
C9997205I Pin for brake disk 4 pcs
C9997207W Tire SAVA B 11 4.00-6” 66L B11 1 pcs
C9997205U Caliper 1 pcs
C9997205V Half rim 6” 7020 upper with disc support 1 pcs
C9997205W Half rim 6” 7020 lower with disc support 1 pcs
C9997205X Hub 1 pcs
C9997205Y Washer to Brake disk 1 pcs
C9997702C Compression spring 1x8x28.5x8.5 2 pcs
C9997214D Brake linings for magnesium caliper 2 pcs
C9997205V
C9997214D
C9997030B
C9997206X
C9997207W
C9997702C
