FLIGHT DESIGN CT2K - KA1030160

To Next Page

To Previous Page

Chapter 1: Fuselage

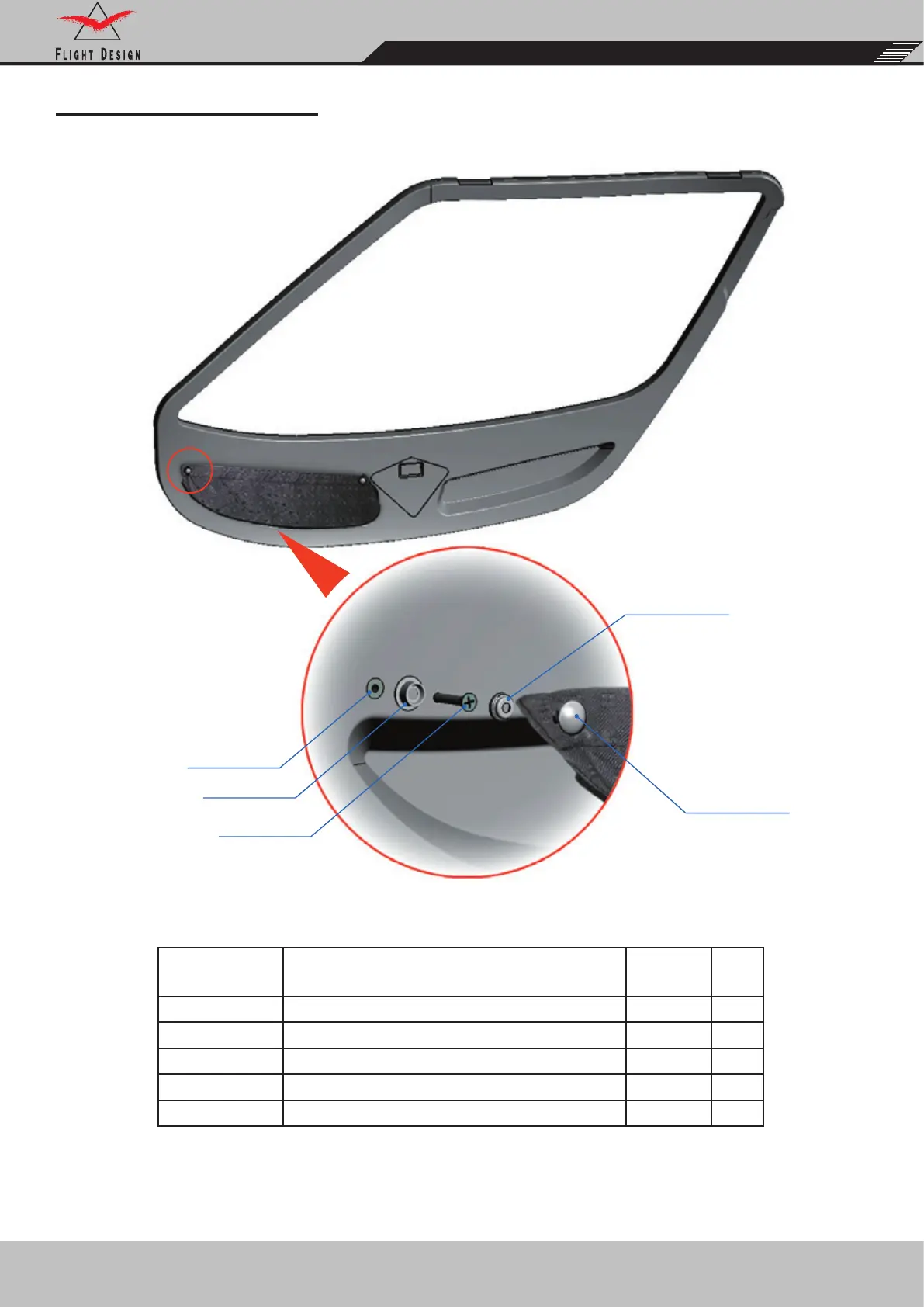

KA1030160 - P

OCKET

, D

OOR

C9997542C

C9997542A

C9997542B

C9996270F

Part Number Description

Q-ty per

ASSY

Unit

C9996270F Machine screw DIN 965-M4x20 A2-70 2 pcs

C9996833 Countersunk rivet nut, steel, M4 A2 2 pcs

C9997542A Upper cap for Press button TRW 10127 2 pcs

C9997542B Sleeve for Press button TRW 10224 2 pcs

C9997542C Bush for Press button TRW 10370 2 pcs

C9996833
