FLIGHT DESIGN CT2K - Spring Unit

To Next Page

To Previous Page

Chapter 4: Landing Gear

107

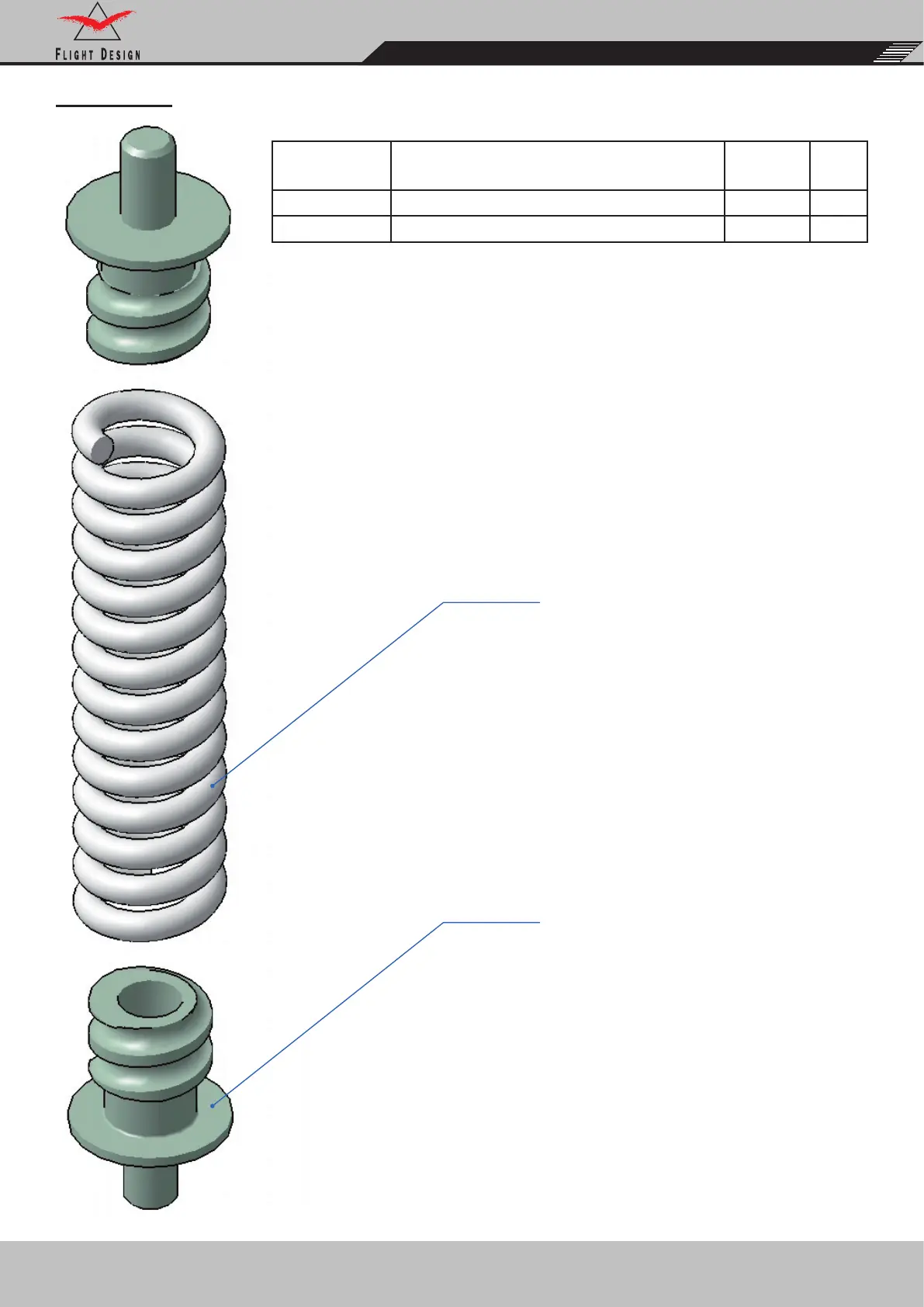

SPRING UNIT

Part

Number

Description

Q-ty per

ASSY

Unit

KA4010141 Bush 2 pcs

C9997702A Compression spring 5,50x22,50x136,0 1 pcs

KA4010141

C9997702A
