FLIGHT DESIGN CT2K - KA1060001 Rail

To Next Page

To Previous Page

Chapter 1: Fuselage

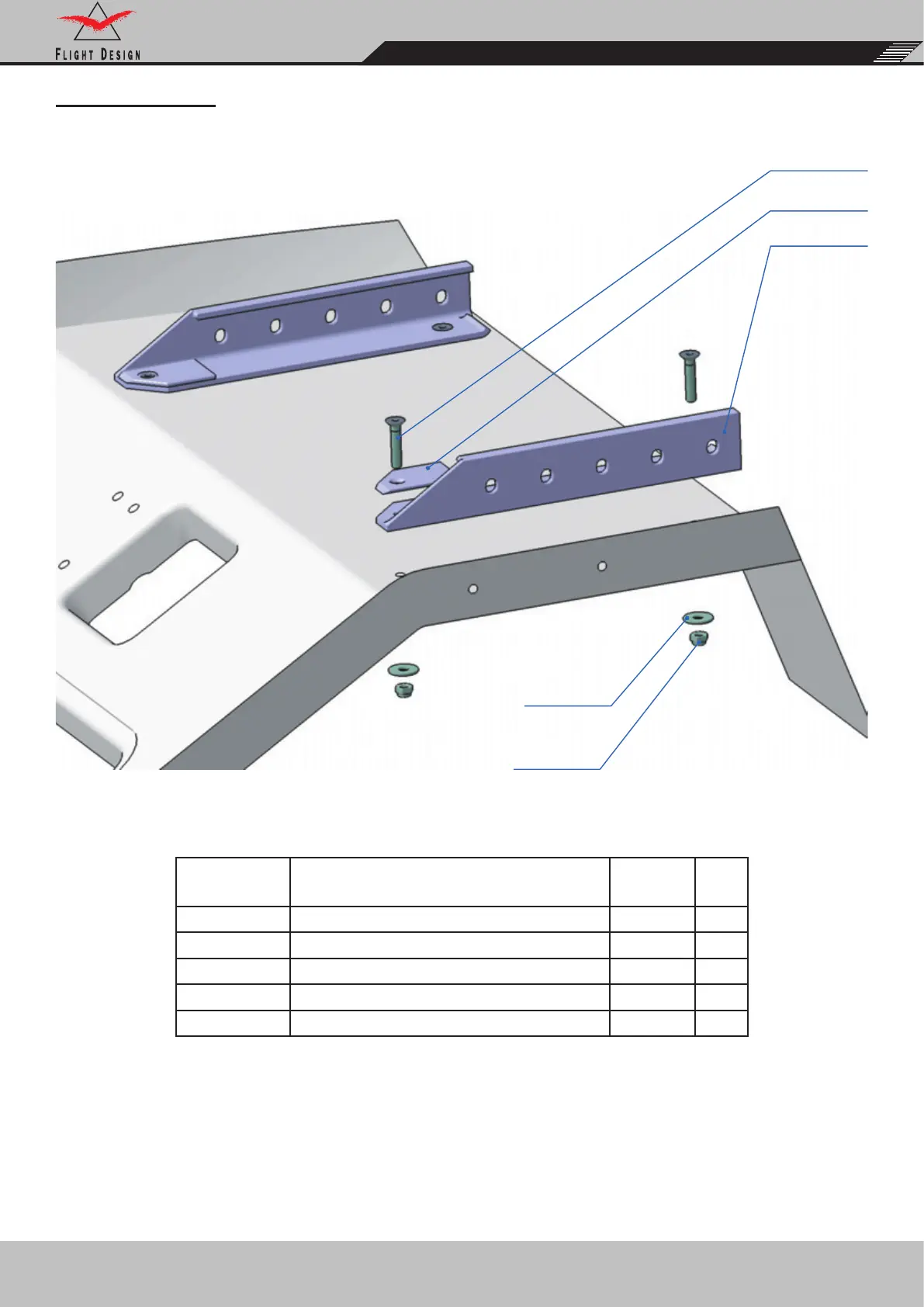

KA1060001 RAIL

Part

Number

Description

Q-ty per

ASSY

Unit

KA1060001 Rail 2 pcs

KA1060003 Seat stoppeer 2 pcs

C9996208K Bolt DIN 7991 M5x25-8.8 4 pcs

C9996333 Self-locking nut DIN 985-M5, regular 4 pcs

C9996563 Washer DIN 9021-5.3mm VZ 4 pcs

KA1060001

KA1060003

C9996208K

C9996333

C9996563
