FLIGHT DESIGN CT2K - Fuel Valve Installation, German Version

Chapter 7: Systems
300
Release 5. Issue 21.January.2008Copyright © 2008 Flight Design GmbH. All Rights reserved
Part
Number
Description
Q-ty per
ASSY
Unit
KB7020010 Fuel valve rod 1 pcs
KB7020020 Fuel valve 1 pcs
KB7020042 Fuel valve bracket upper 2 pcs
C9993184A Fuel tube DIN 73379, 7.5x13.0 1 m
C9996025 Bolt DIN 912 M4x16-8.8 4 pcs
C9996332 Self-locking nut DIN 985-M4, regular 4 pcs
C9996333 Self-locking nut DIN 985-M5, regular 1 pcs
C9996562 Washer DIN 9021-4.3 mm VZ 4 pcs
C9997010 Angle joint M 5 1 pcs
C9997257B Connector E-GET60-9-1/4-MS 2 pcs
C9997715H Clamp 14 mm 2 pcs
C9997720A Disposable clamp 13.8 mm 2 pcs

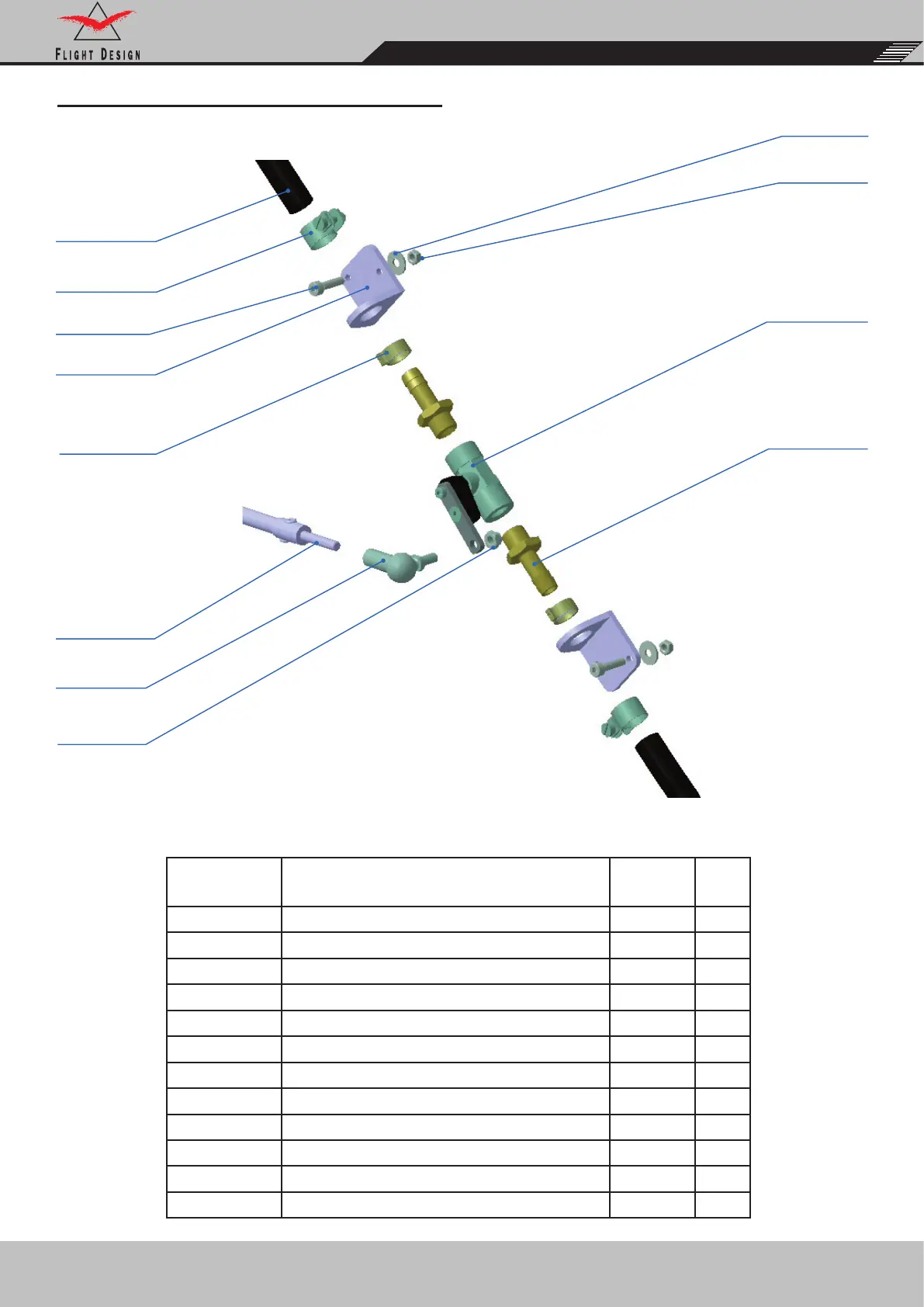

FUEL VALVE INSTALLATION, GERMAN VERSION
KB7020010
KB7020020
KB7020042
C9996025
C9996332
C9996333
C9996562
C9997010
C9997720A
C9997257B
C9993184A
C9997715H
