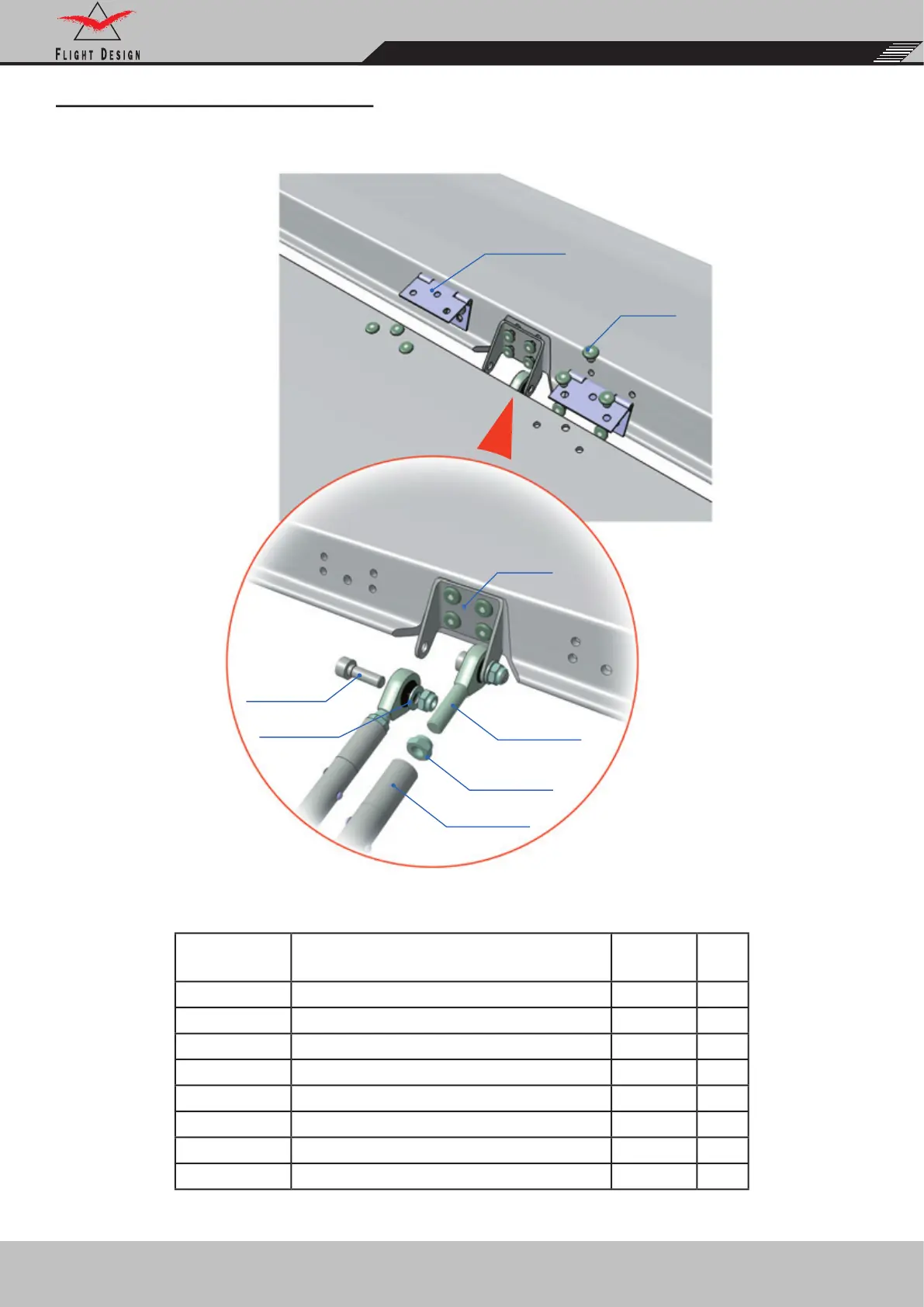

FLIGHT DESIGN CT2K - Rod, Trim Tab Control, Mounting

Chapter 3: Stabilizer & Rudder
94
Copyright © 2008 Flight Design GmbH. All Rights reserved Release 5. Issue 21.January.2008
R
OD
, T
RIM
T
AB
C
ONTROL
, M
OUNTING
KA6060010
C9997006C
C9996333
Part
Number
Description
Q-ty per
ASSY
Unit
KA3011001
Hange of trim tab
8
pcs
KA3011110 Bracket, Trim Tab
1
pcs
KA6060010 Trim tab control rod
2
pcs
C9996039
Bolt DIN 912 M5x30-8.8
2
pcs
C9996333
Self-locking nut DIN 985-M5, regular
4
pcs
C9996503 Washer DIN 125 A2-5.3mm
2
pcs
C9996653 Stainl. steel rivet A2 4x11.5
12*
pcs
C9997006C
Rod end bearing, ext. thread GA5
2
pcs
C9996039
C9996503
KA3011110
C9996653
KA3011001
