FLIGHT DESIGN CT2K - KA7010000 - Installation Rescue System BRS1050

To Next Page

To Previous Page

Chapter 7: Systems

280

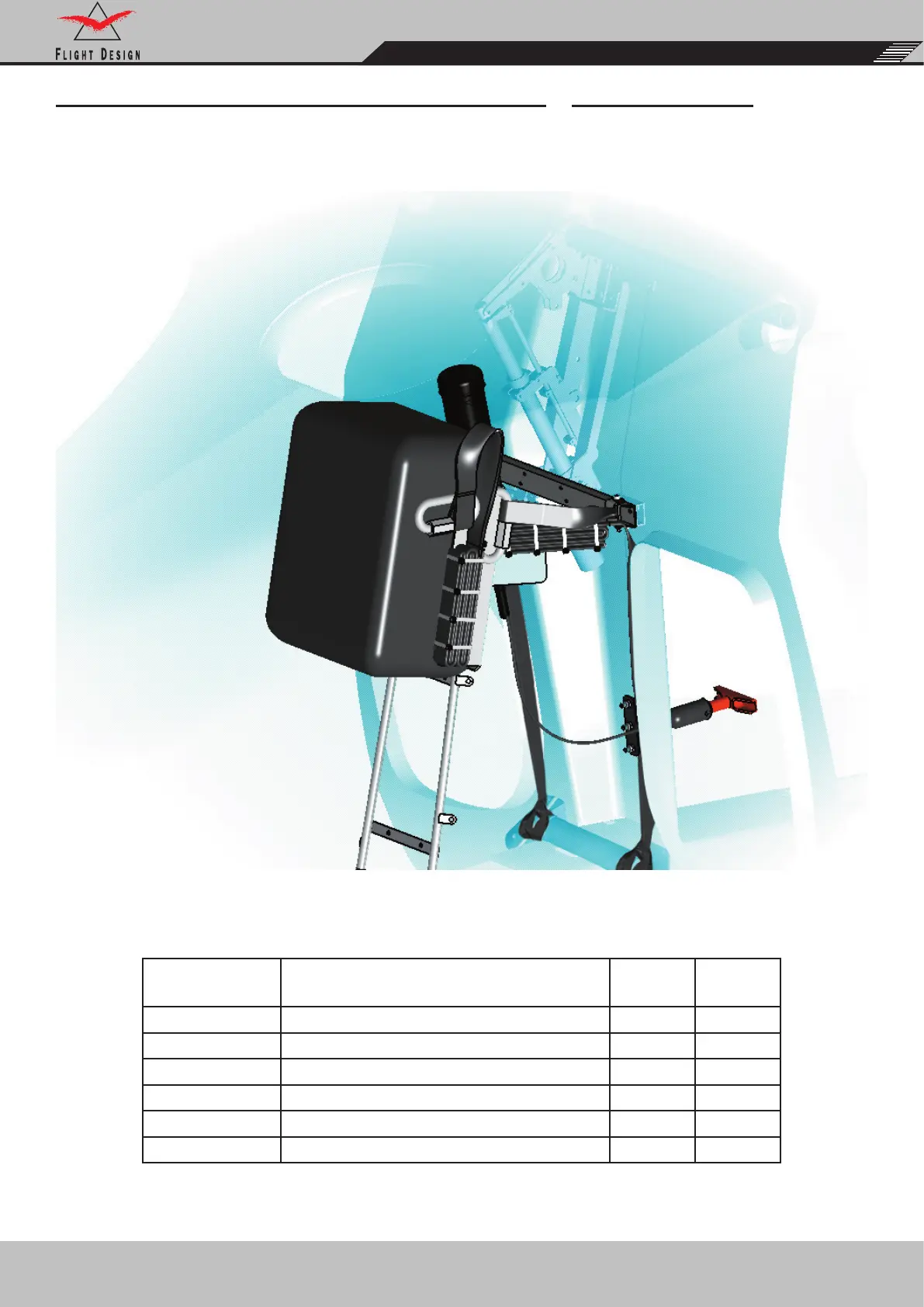

KA7010000 - INSTALLATION RESCUE SYSTEM BRS1050 FIRST S/N 07-02-18

Part Number Description

Q-ty per

ASSY

Unit

KA7010003 Bracket 1 pcs

KA7010004 Bolt 2 pcs

КВ7010010_6 Support of Rescue System 1 pcs

C9996334 Self-locking nut DIN 985-M6, regular 2 pcs

C9996504 Washer DIN 125 A2B-6.4mm 2 pcs

C9997831B Rescue System BRS1050 1 set
