FLIGHT DESIGN CT2K - KA6040060

To Next Page

To Previous Page

Chapter 6: Flight Control

259

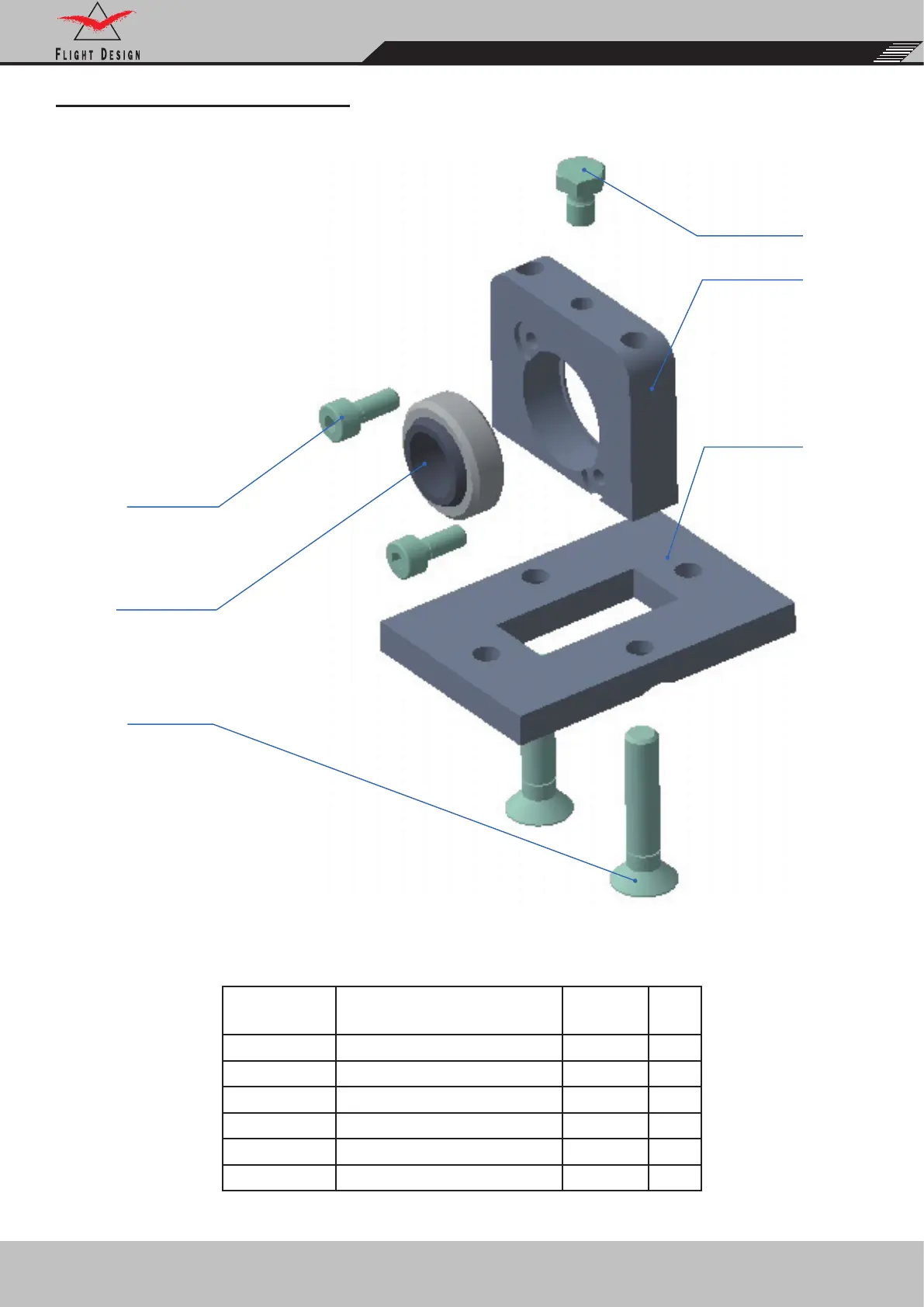

KA6040060 - REAR CONNECTION

Part

Number

Description

Q-ty per

ASSY

Unit

KA6040061 Lower plate 1 pcs

KA6040062 Upper plate 1 pcs

KA6040064 Bolt 1 pcs

C9996025 Bolt DIN 912 M4x16-8.8 2 pcs

C9996216 Bolt DIN 7991 M6x20-8.8 2 pcs

C9997002E Bearing GE12E 1 pcs

KA6040061

C9996216

KA6040064

C9997002E

C9996025

KA6040062
