FLIGHT DESIGN CT2K - KA5010103 Bracket

To Next Page

To Previous Page

Chapter 5: Power Plant

131

Part Number Description

Q-ty per

ASSY

Unit

KB5010100 Engine mount, light

pcs

KB5010100-02 Engine mount, reinforced

KB5010100-03 Engine mount, stainless steel

KA5010103

KA5010103-01

Bracket 1 pcs

KA5010103-02 Angle, Supporting, reinforced

1 set

KA5010103-03 Angle, Supporting, stainless steel

C9996650 Stainl. steel rivet A2 4x7.5 2 pcs

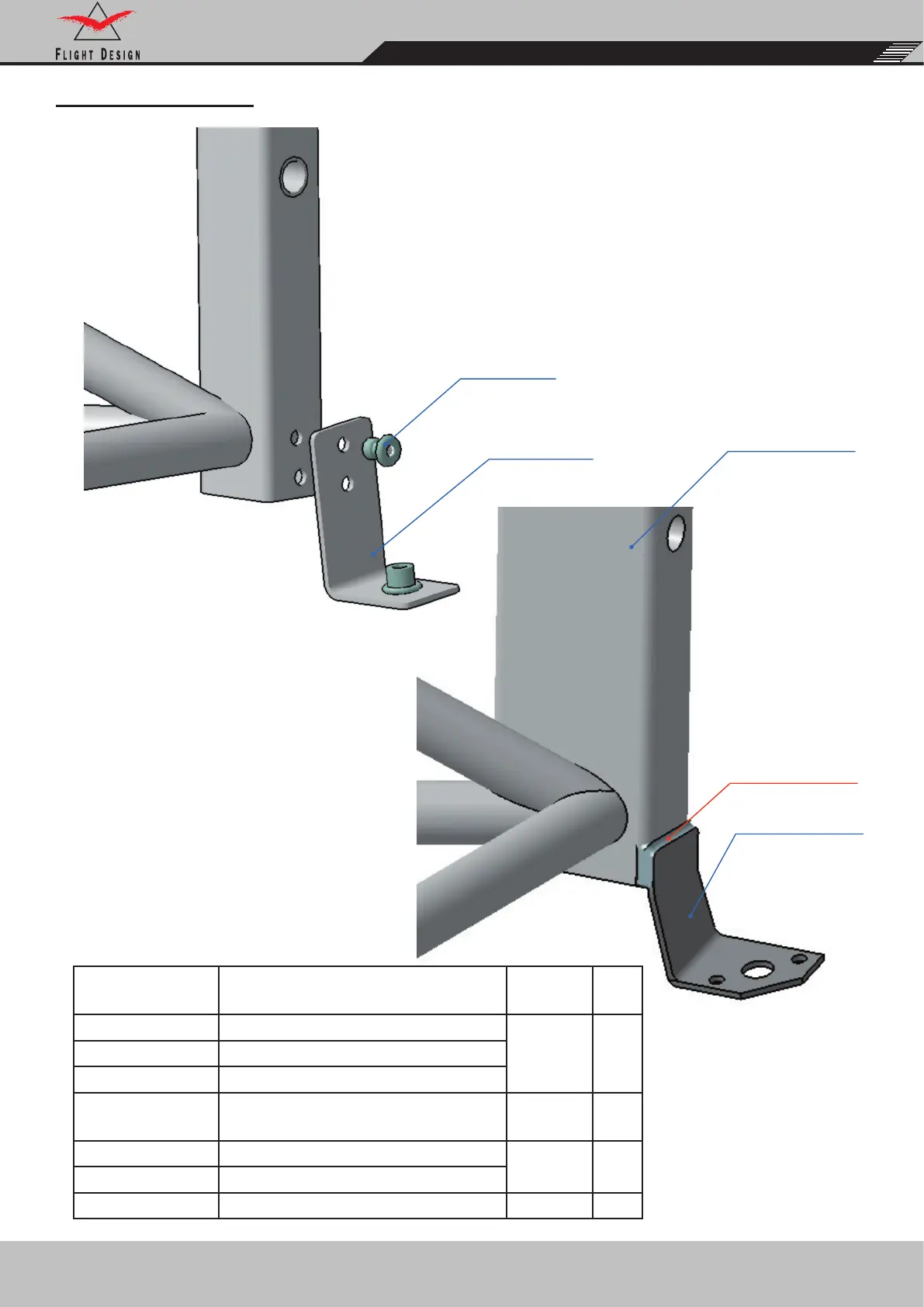

KA5010103 BRACKET

C9996650

KA5010103

KA5010103-01

KB5010100

KB5010100-02

KB5010100-03

Welding seams

KA5010103-02

KA5010103-03
