FLIGHT DESIGN CT2K - KA6010120

To Next Page

To Previous Page

Chapter 6: Flight Control

190

Part

Number

Description

Q-ty per

ASSY

Unit

KA6010121 Grip 1 pcs

KA6010122 Grip 1 pcs

KA6010123 Plate 1 pcs

KA6010124 Bolt 1 pcs

KA6010125 Bush 2 pcs

KA6010127 Lock for trim tab control lever 1 pcs

C9996216 Bolt DIN 7991 M6x20-8.8 1 pcs

C9996334 Self-locking nut DIN 985-M6, regular 1 pcs

C9996504 Washer DIN 125 A2B-6.4mm 1 pcs

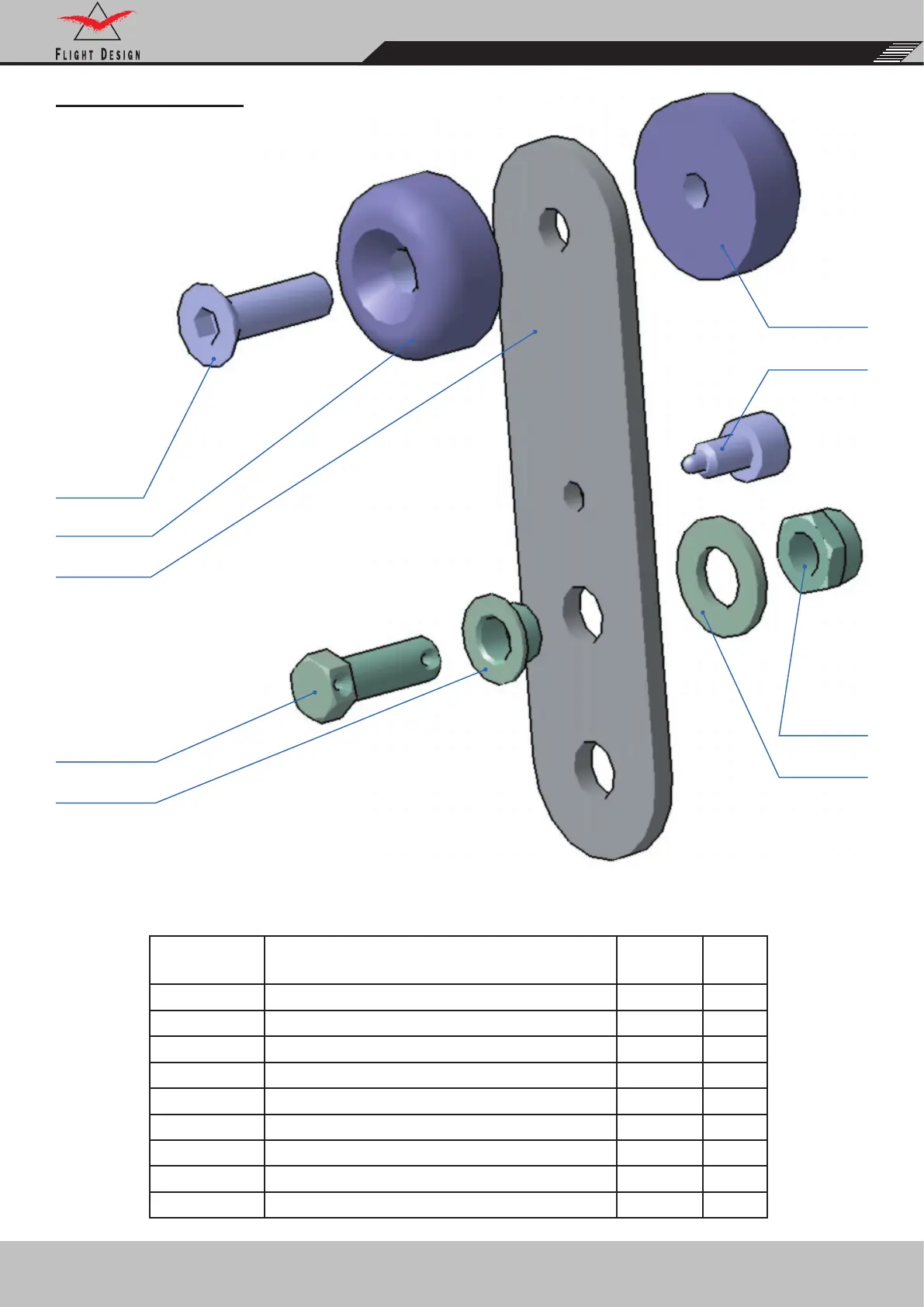

KA6010120 - TRIMM

KA6010121

KA6010123

KA6010124

KA6010125

KA6010122

C9996334

C9996504

C9996216

KA6010127
