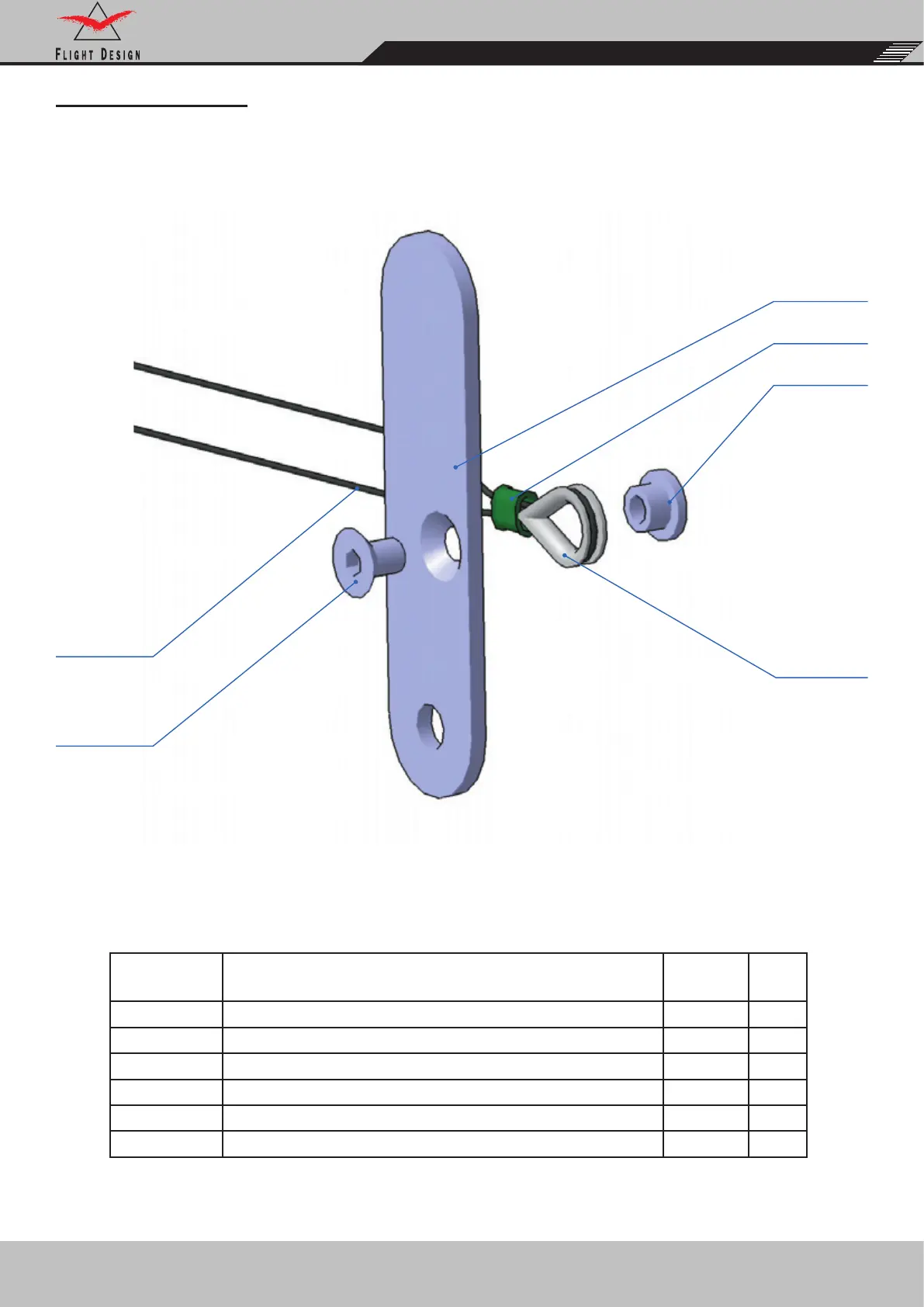

FLIGHT DESIGN CT2K - KA6010110

To Next Page

To Previous Page

Chapter 6: Flight Control

182

Part

Number

Description

Q-ty per

ASSY

Unit

KA6010111

Bush 1 pcs

KA6010112

Plate 1 pcs

KA6010113

Bolt 1 pcs

C9997060 Thimble 2 mm 1 pcs

C9997051 Nicopress oval sleeve 1.5-1.7 mm for 1.6mm cable 1 pcs

C9997065B Steel rope 7x7 1 mm 2.3 m

KA6010110 - CHOKE

KA6010111

KA6010112

C9997051

C9997060

C9997065B

KA6010113
