FLIGHT DESIGN CT2K - KA7040003

To Next Page

To Previous Page

Chapter 7: Systems

330

Part

Number

Description

Q-ty per

ASSY

Unit

KA7040003 Bracket 1 pcs

KA7040004 Clamp 1 pcs

C9996207 Bolt DIN 7991 M5x16-8.8 2 pcs

C9996283C Bolt DIN 933 M5x20-8.8 4 pcs

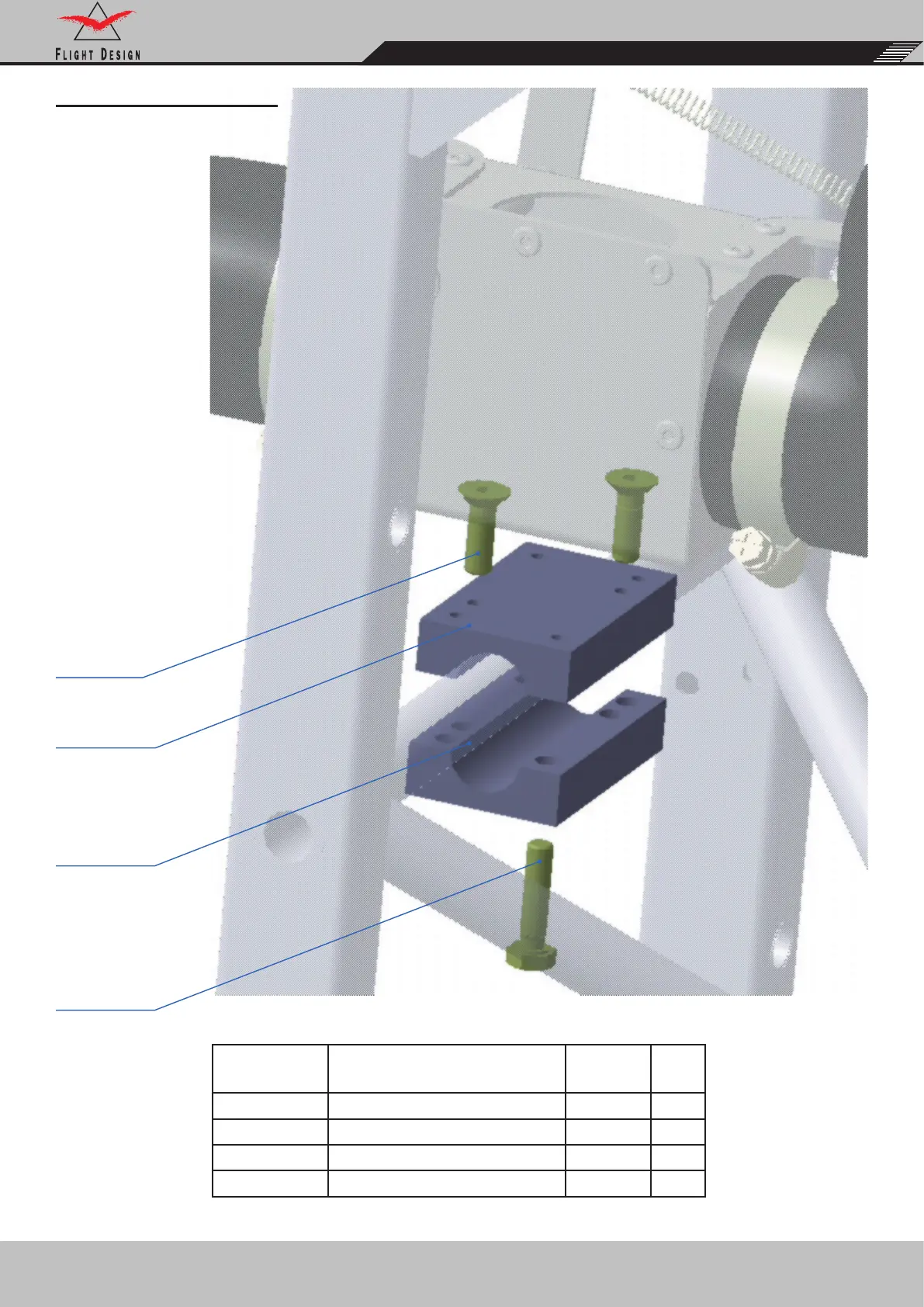

KA7040003 - BRACKETS

KA7040003

KA7040004

C9996207

C9996283C
