Chapter 7: Systems

349

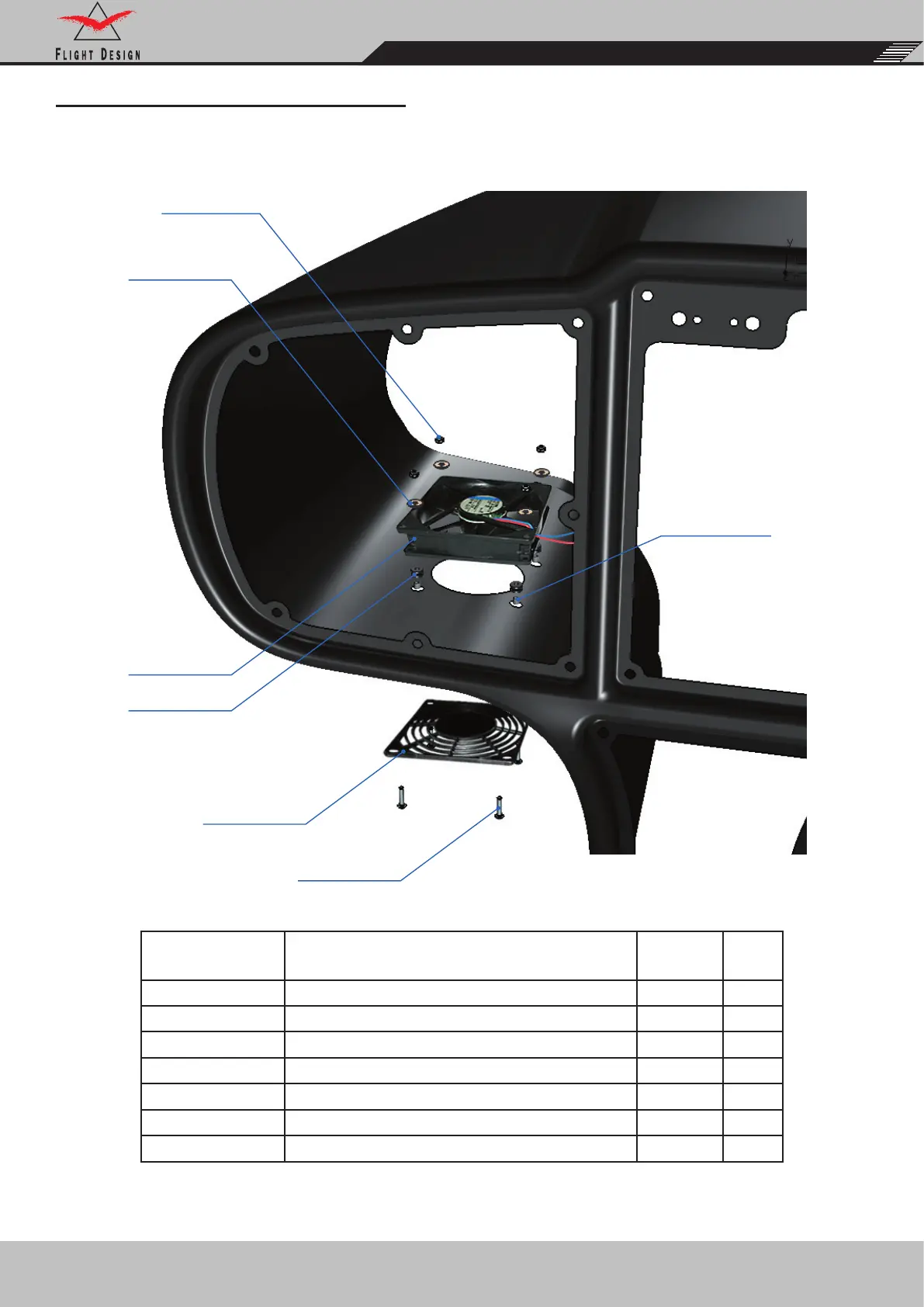

KA1081950 - FANS, DYNON, MOUNTING

C9996257M

Part Number Description

Q-ty per

ASSY

Unit

KA1081951 Bush 8 pcs

C9996257M Bolt M4x20 DIN 7380 8 pcs

C9996332 Self-locking nut DIN 985-M4, regular 8 pcs

C9996562 Washer DIN 9021-4.3 mm VZ 32 pcs

C9997731D Grommet 6 mm 8 pcs

C9999186 Fan DC 3412 NHH-379 2 pcs

C9999186B Protection grate LZ23-2 2 pcs

C9999186B

C9997731D

C9999186

C9996562

C9996332

KA1081951
