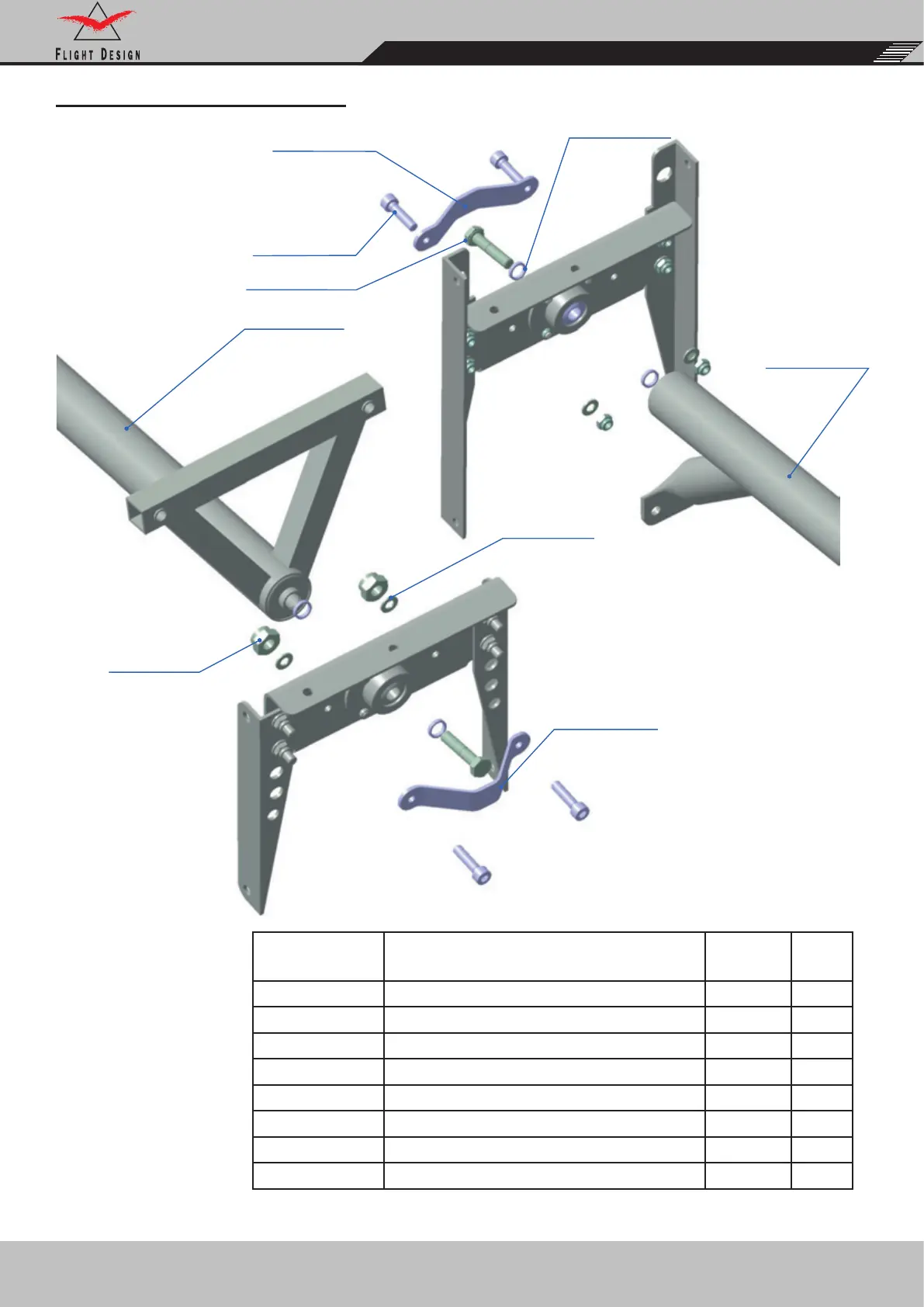

FLIGHT DESIGN CT2K - KA6020000

To Next Page

To Previous Page

Chapter 6: Flight Control

200

KA6020200

KA6020006

C9996232

KA6020004

C9996164A

KA6020007

C9996502

Part Number Description

Q-ty per

ASSY

Unit

KA6020200 Fork rod 1 pcs

KA6020004 Lock Plate 1 pcs

KA6020007 Lock Plate 1 pcs

KA6020006 Washer

4 pcs

C9996232 Bolt DIN 931 M8x35-8.8 2 pcs

C9996164A Bolt DIN 912 M4x12-8.8 4 pcs

C9996332 Self-locking nut DIN 985-M4, regular 4 pcs

C9996502 Washer DIN 125 A2-4.3mm 4 pcs

C9996332

KA6020200

KA6020000 - AILERON CONTROL
