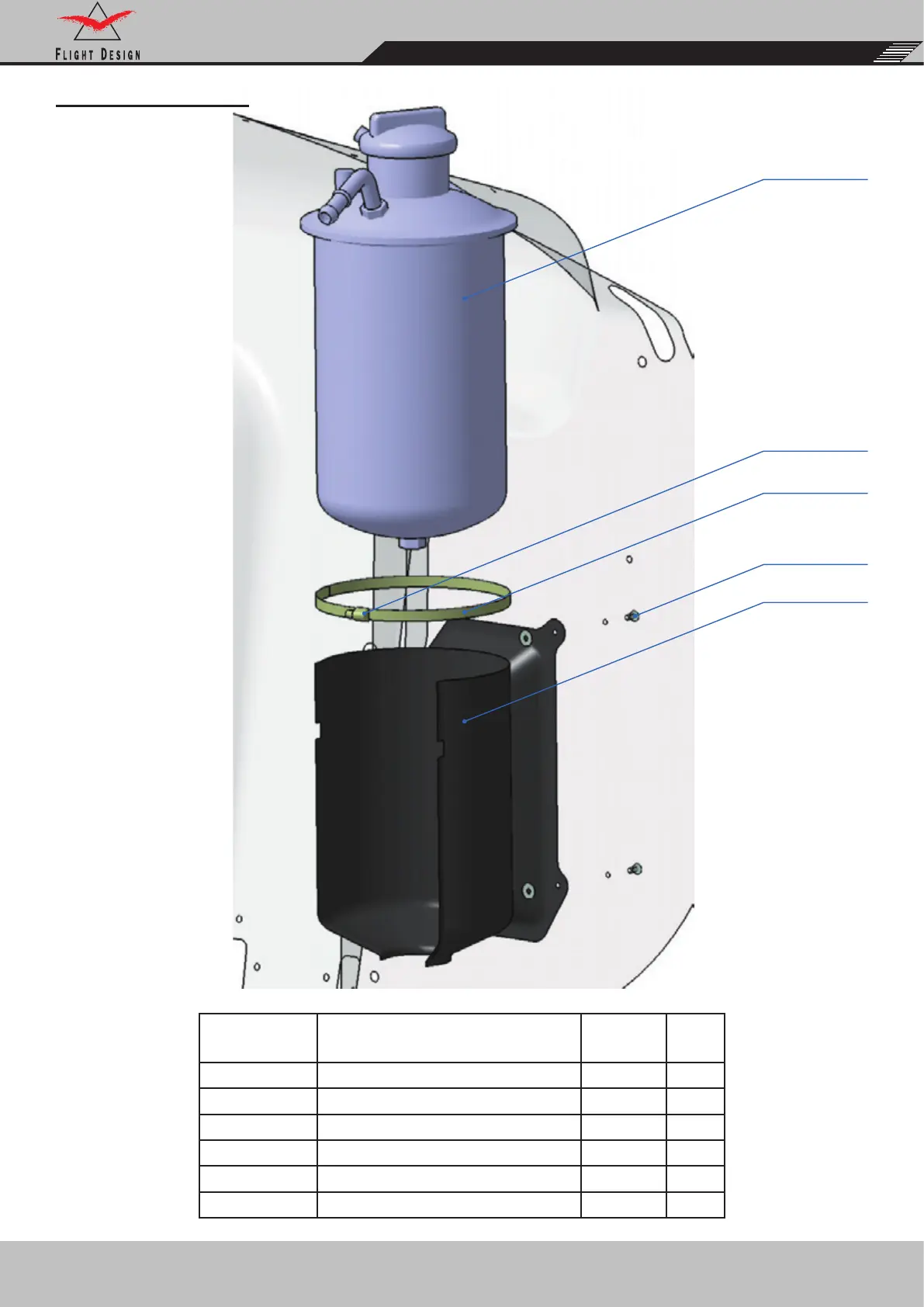

FLIGHT DESIGN CT2K - C9997791 I Oil Tank

To Next Page

To Previous Page

Chapter 5: Power Plant

160

Part

Number

Description

Q-ty per

ASSY

Unit

KA5060100 Oil tank bracket 1 pcs

C9996562 Washer DIN 9021-4.3 mm VZ 4 pcs

C9996650 Stainl. steel rivet A2 4x7.5 4 pcs

C9997710A Clamp band 8mm 0.5 m

C9997726 Turnbuckle 1 pcs

C9997791I Oil tank 1 pcs

C9997791I OIL TANK

KA5060100

C9996562

C9996650

C9997710A

C9997726

KA5060100
