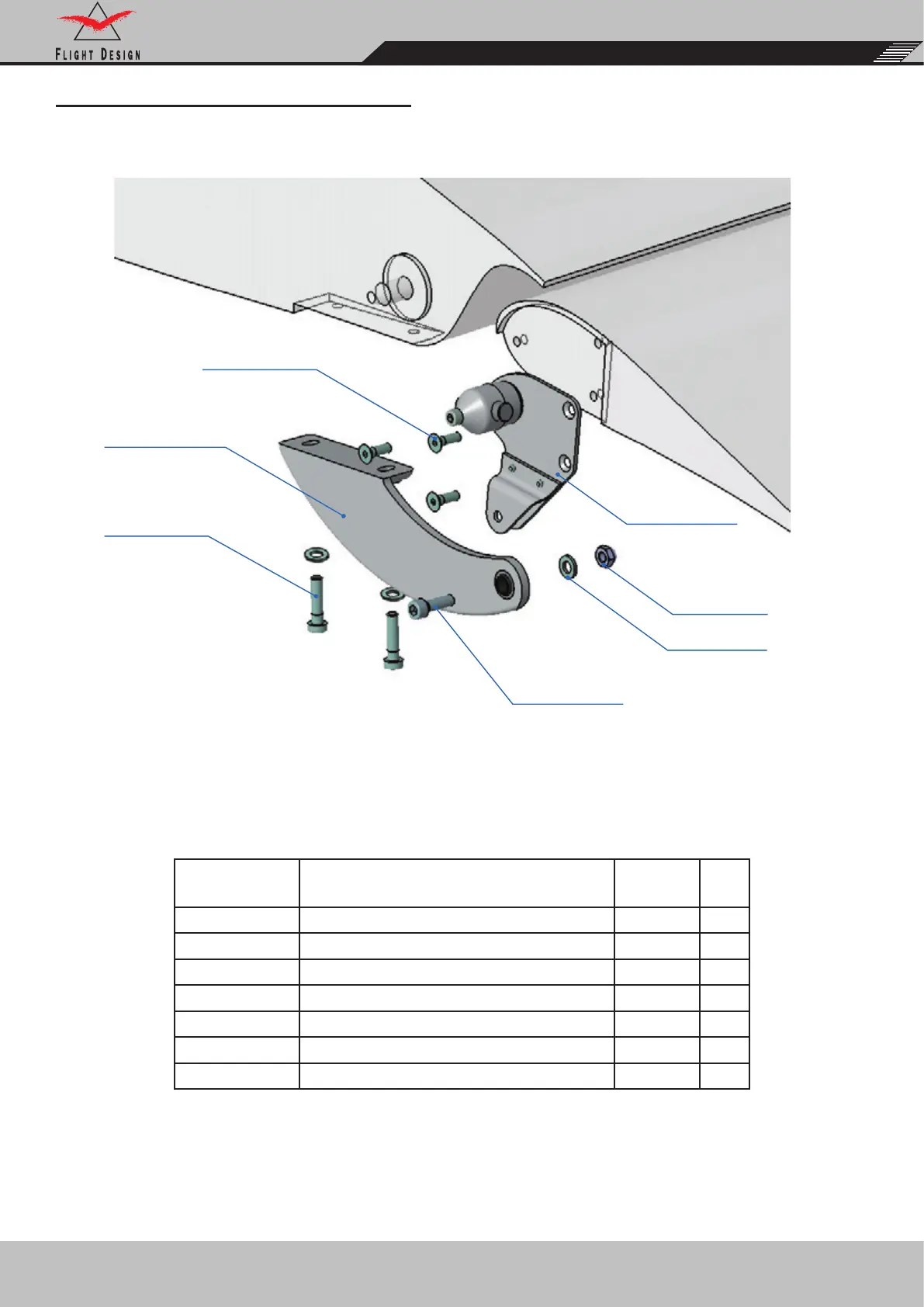

FLIGHT DESIGN CT2K - WA2010010 - Pivot, Wing No1, Right

To Next Page

To Previous Page

Chapter 2: Wings

WA2010010

C9996334

C9996504

C9996221

Part Number Description

Q-ty per

ASSY

Unit

WA2010010

Pivot, Wing No1 1 pcs

WA2020003

Bolt 1 pcs

WA2040010

Pivot, Flap No.1 1 pcs

C9996334 Self-locking nut DIN 985-M6, regular 1 pcs

C9996504 Washer DIN 125 A2B-6.4mm 3 pcs

C9996221 Bolt DIN 7991 M5x16 A2 3 pcs

C9996058C Bolt DIN 6912 M6x25, A2-70 2 pcs

WA2020003

WA2040010

WA2010010 - PIVOT, WING NO1, RIGHT

C9996058C
