FLIGHT DESIGN CT2K - KA3020010 Pivot Upper

To Next Page

To Previous Page

Chapter 3: Stabilizer & Rudder

Part

Number

Description

Q-ty per

ASSY

Unit

KA3020010 Pivot upper 1 pcs

KA3020512 Pin 1 pcs

C9996283 Bolt DIN 933 M5x16-8.8 4 pcs

C9997023 Bearing, MFM-0610-06 1 pcs

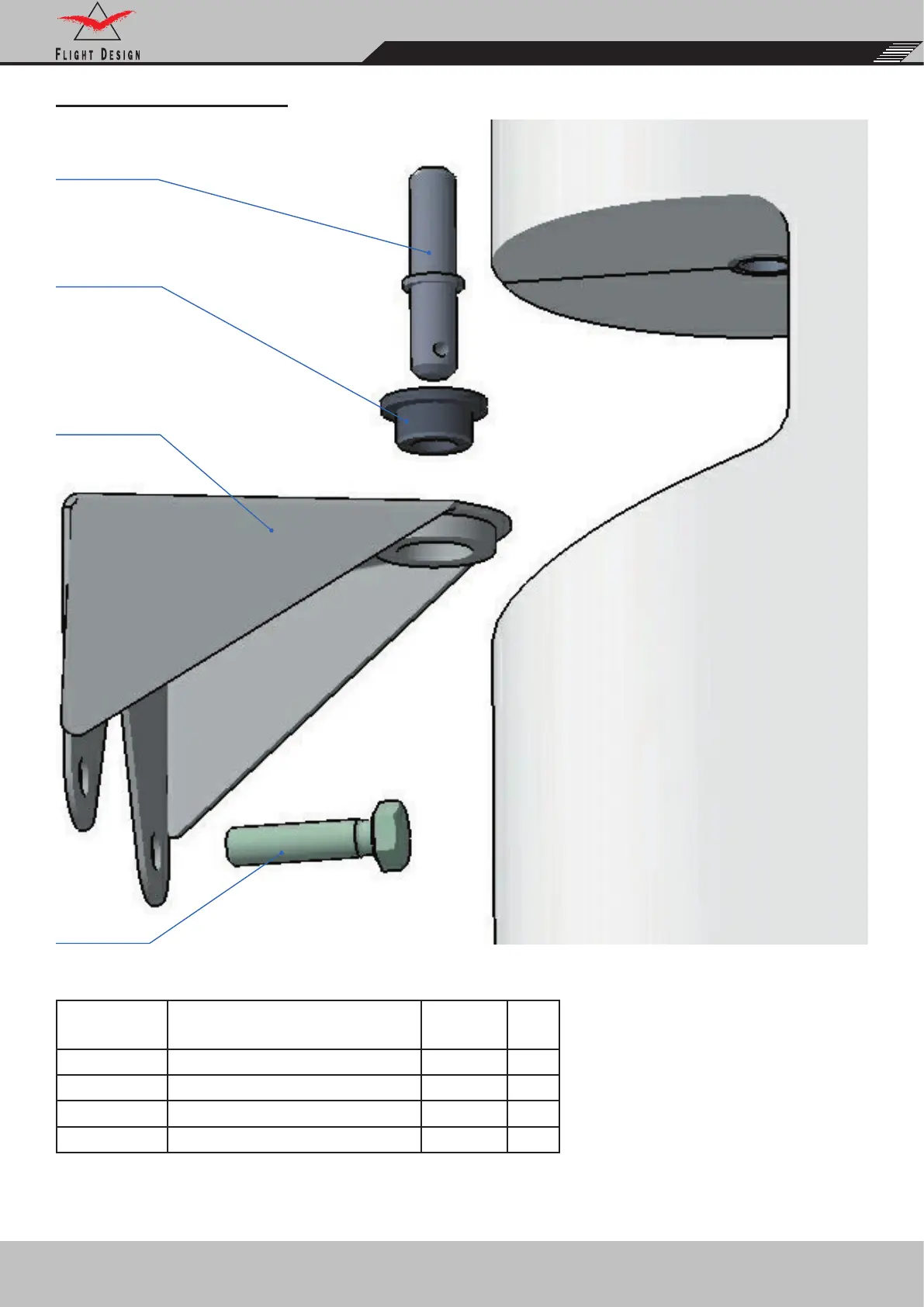

KA3020010 PIVOT UPPER

KA3020512

C9996283

KA3020010

C9997023
