FLIGHT DESIGN CT2K - KA6061000 - Rudder Trim Mechanism Mounting

To Next Page

To Previous Page

Chapter 6: Flight Control

267

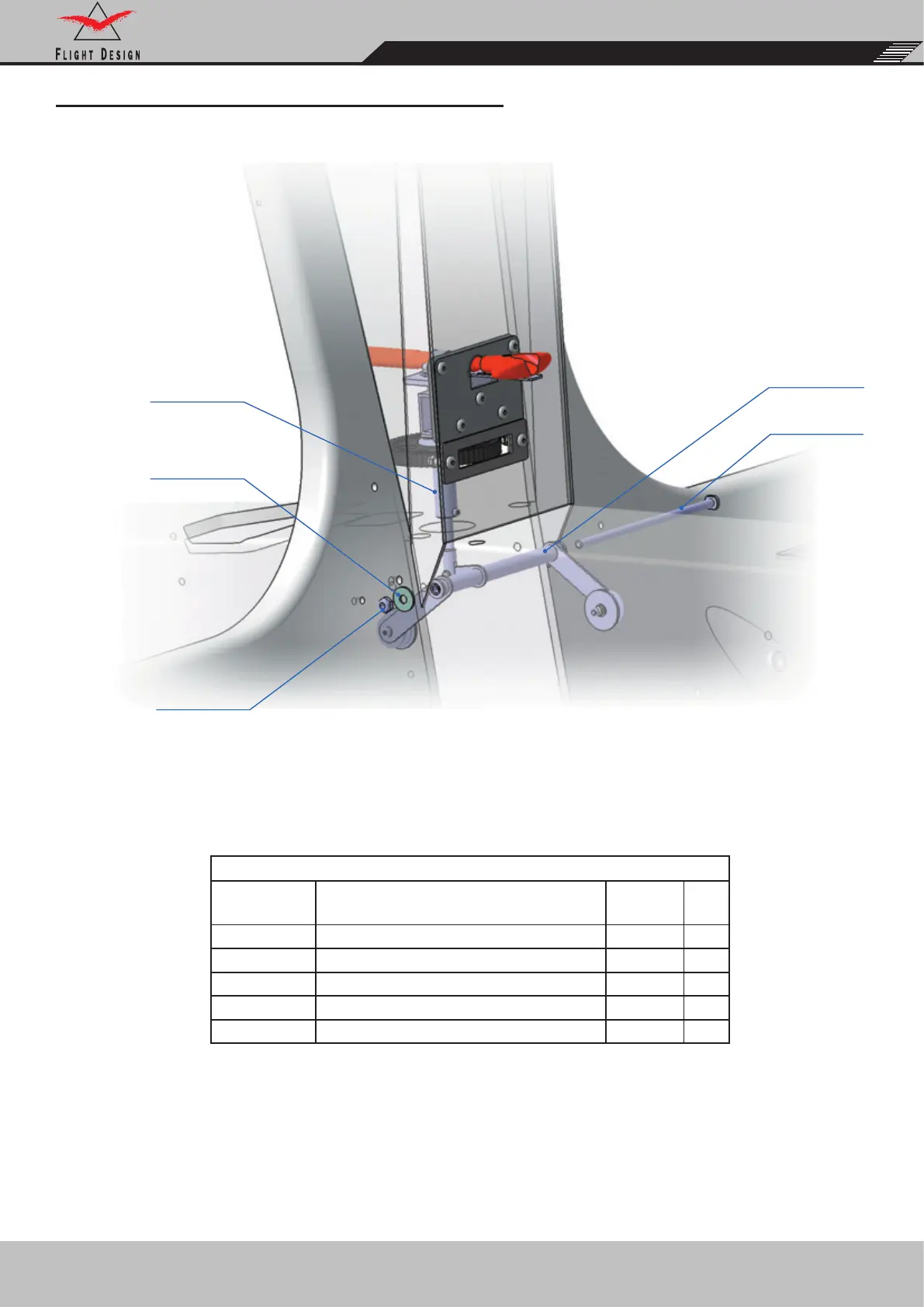

KA6061000 - RUDDER TRIM MECHANISM MOUNTING

KA6061000 - Rudder Trim Mechanism Mounting

Part

Number

Derscription

Q-ty per

ASSY

Unit

KA6061040 Bolt 1 pcs

KL6061100

Control Unit 1 pcs

KL6061030 Rocker in Assembly 1 pcs

C9996334 Self-locking nut DIN 985-M6, regular 1 pcs

C9996565 Washer DIN 9021-6.4mm VZ 1 pcs

C9996334

C9996565

KA6061040

KL6061100

KL6061030
