FLIGHT DESIGN CT2K

To Next Page

To Previous Page

Chapter 6: Flight Control

193

Part

Number

Description

Q-ty per

ASSY

Unit

C9993192 Cable housing 1.9x5.0 4.4 m

C9997065B Steel rope 7x7 1 mm 2.8 m

C9997816B Cable stop 621.1-Z15.2 zk 1 pcs

C9997816C Cable stop 1806-Z ni 2 pcs

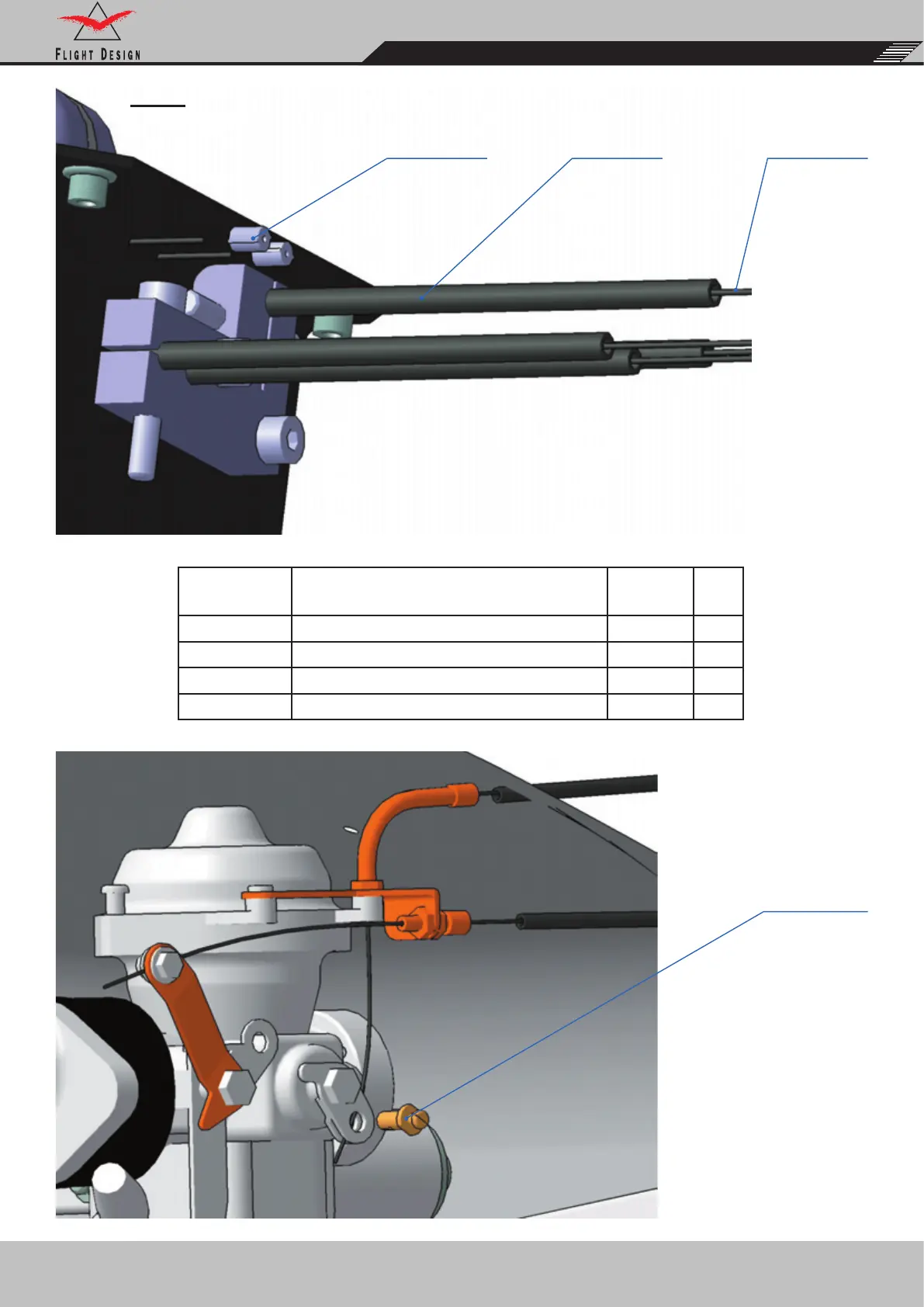

TROSS

C9997816B

C9997065B

C9993192C9997816C
