FLIGHT DESIGN CT2K - KA6020060 - Cable & KA6020400

To Next Page

To Previous Page

Chapter 6: Flight Control

201

Part

Number

Description

Q-ty per

ASSY

Unit

KA6020003 Bush 2 pcs

KA6020060 Cable 1 pcs

KA6020400 Rod 1 pcs

KA6050001 Bush 4 pcs

С9996062 Bolt DIN 912 M6x45-8.8 1 pcs

С9996334 Self-locking nut DIN 985-M6, regular 2 pcs

С9996504 Washer DIN 125 A2B-6.4mm 2 pcs

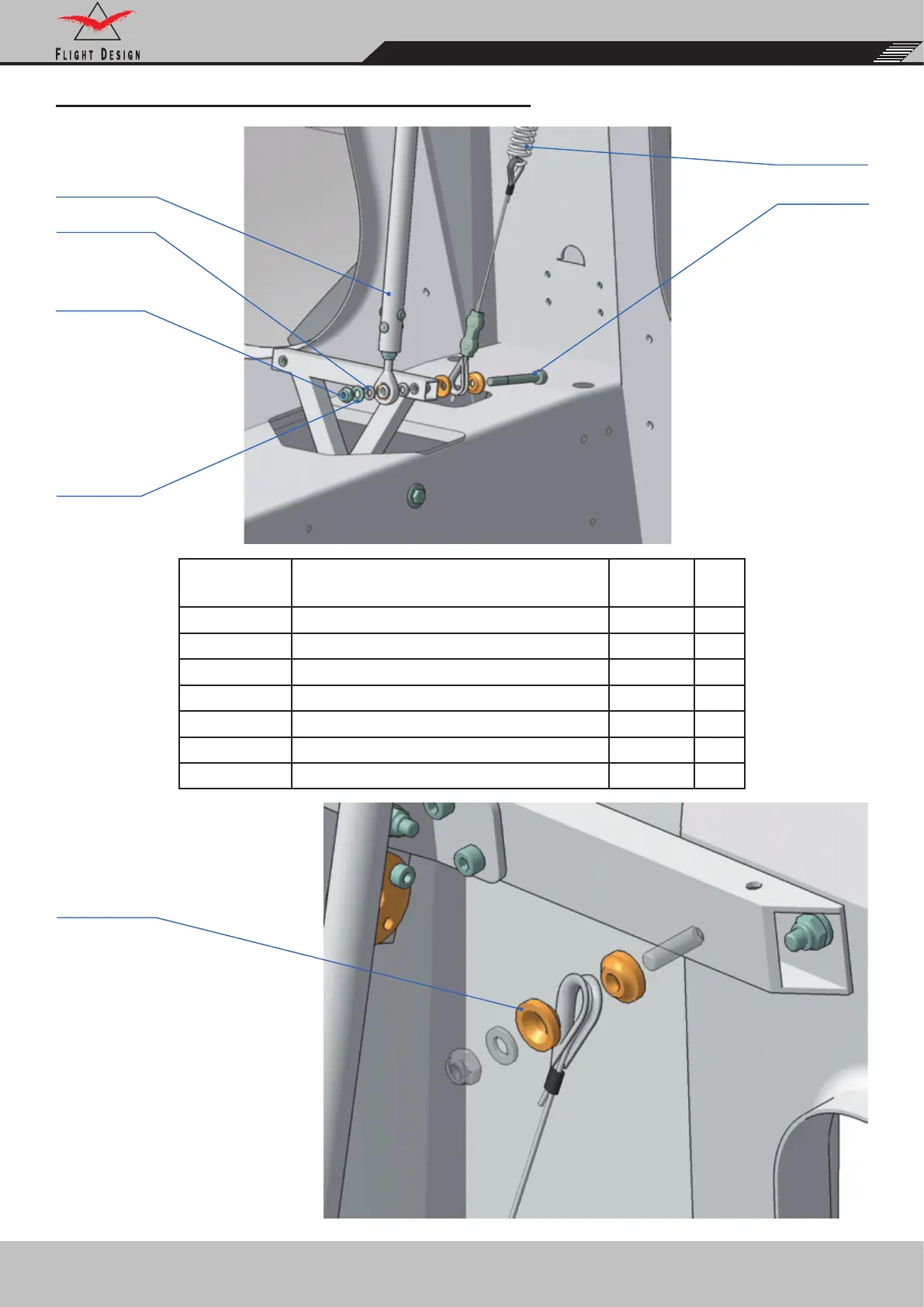

KA6020060 - CABLE & KA6020400 - VERTICAL ROD

KA6020400

С9996062

С9996334

С9996504

KA6020060

KA6050001

KA6020003
