Chapter 2: Wings
72
Copyright © 2008 Flight Design GmbH. All Rights reserved Release 5. Issue 21.January.2008

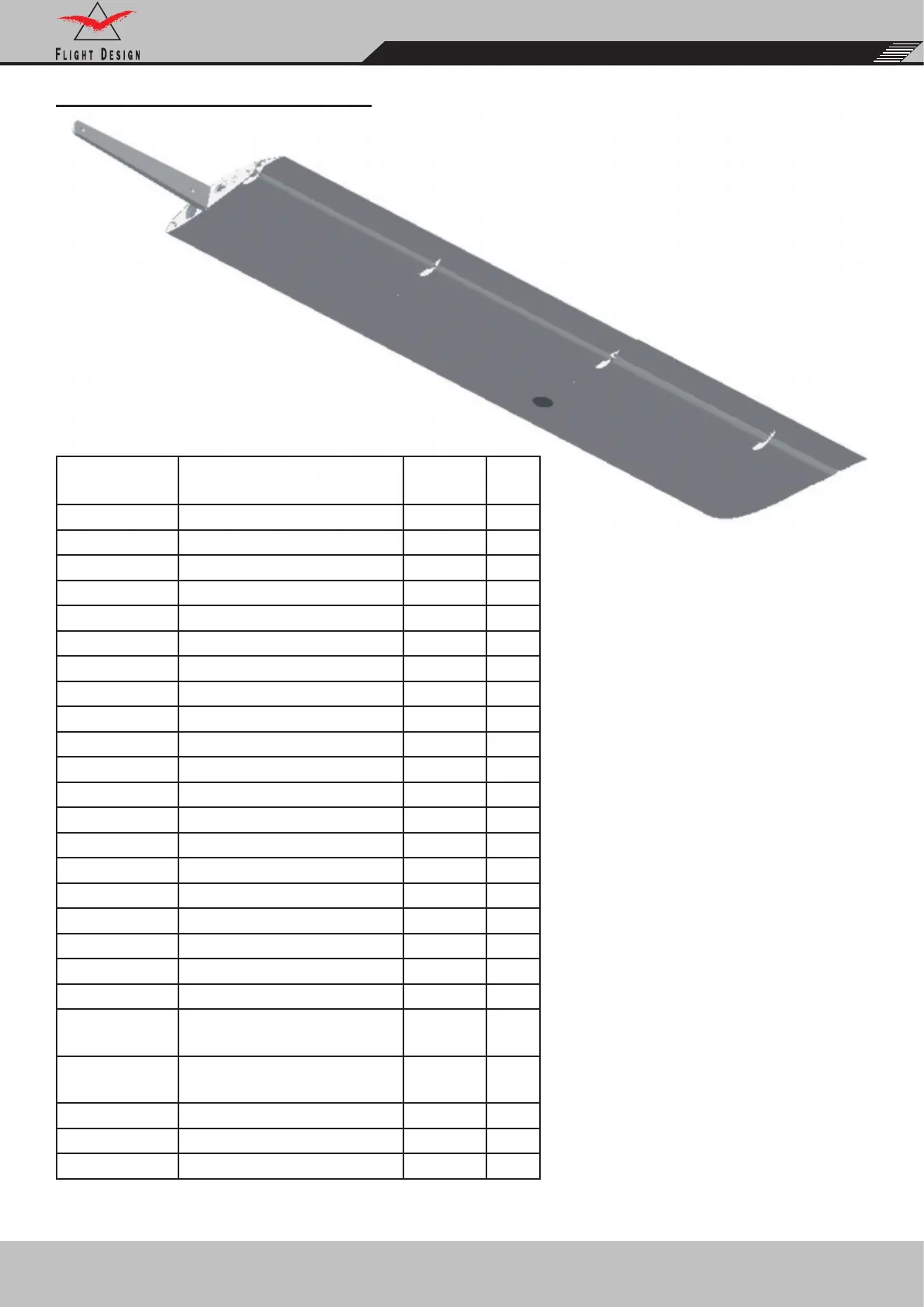

KA2010000 WING CONSOLE, RIGHT
Part Number Description
Q-ty per
ASSY
Unit
KA2010001 Cap 1 pcs
KA2010010R Wing pivot No1, right 1 pcs
KA2010020R Wing pivot No2, right 1 pcs
KA2010030R Wing pivot No3, right 1 pcs
KA2010040R Wing pivot No4, right 1 pcs
KA2020005 Bolt 1 pcs
KA7020002R Cap plate 1 pcs
KA7020003 Connection pipe 2 pcs
KA7020009 Rubber seal ring 1 pcs
KA7020030R Fuel intake 1 pcs
KA7020051 Refill cap 1 pcs
KA7020052 Refill cap flange 1 pcs
KA7020053 Rubber seal ring 1 pcs
KA7020060 Vent 1 pcs
C9993194H PU hose 1/2” OD x 3/8” ID 0.2 m
C9996207 Bolt DIN 7991 M5x16-8.8 4 pcs
C9996286K Bolt DIN 912 M6x16, A2 8 pcs
C9996286P Bolt DIN 912 M6x35, A2 4 pcs
C9996289E Screw DIN 7982-3.5x19 4 pcs
C9996309 Nut M10x1 1 pcs
C9996334
Self-locking nut DIN 985-
M6, regular 12
pcs
C9996504
Washer DIN 125 A2B-
6.4mm 12
pcs
C9997715G Clamp 13 mm 2 pcs
C9997715H Clamp 14 mm 1 pcs
C9997730L O-Ring Material Viton 1 pcs
