FLIGHT DESIGN CT2K - KA4010008 Leather Cap

To Next Page

To Previous Page

Chapter 4: Landing Gear

100

Part

Number

Description

Q-ty per

ASSY

Unit

KA4010008 Leather cap 2 pcs

C9996562 Washer DIN 9021-4.3 mm VZ 8 pcs

C9996763A Alu / steel rivet 4.8x10.0 Art.-Nr.915 904 864 8 pcs

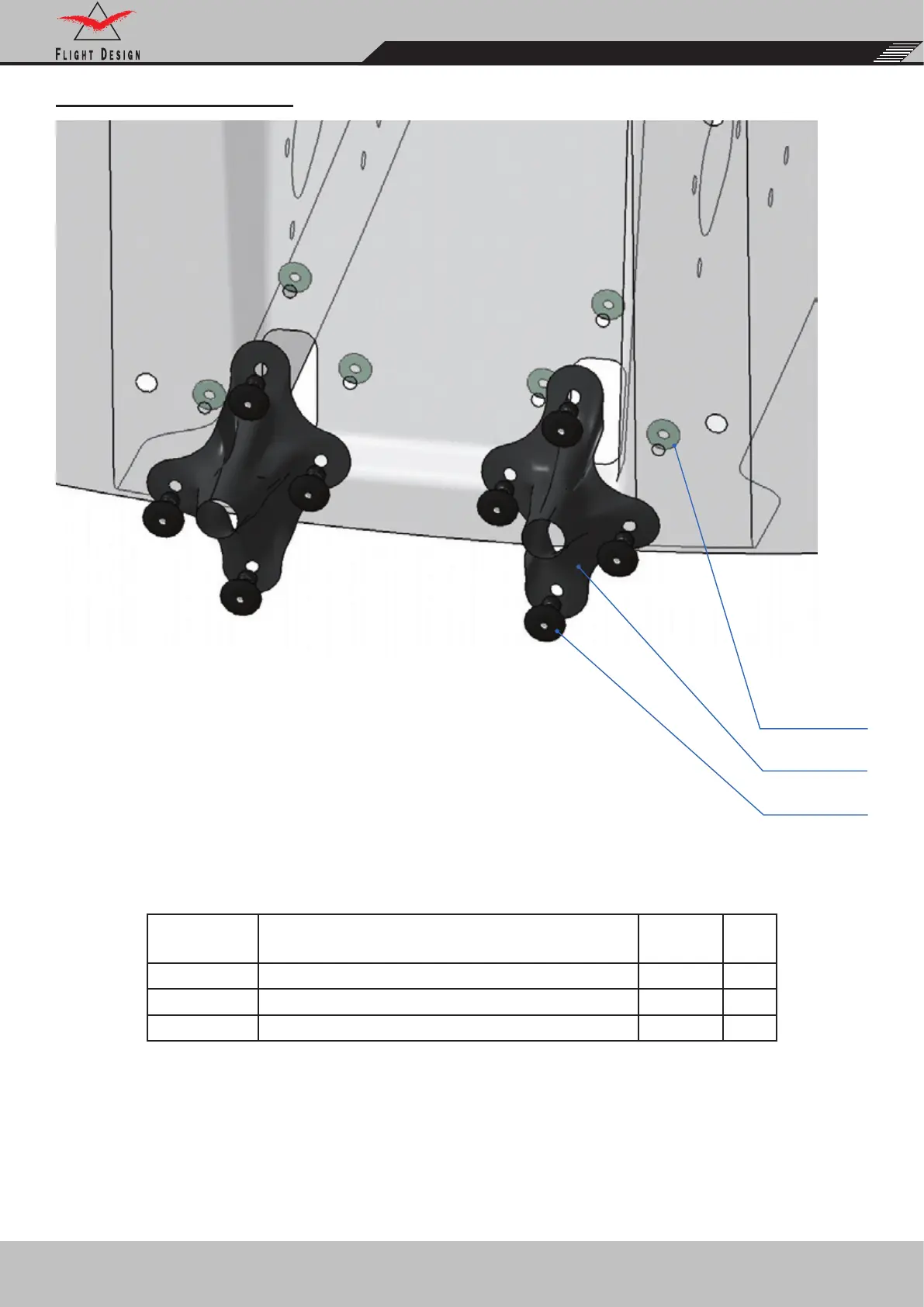

KA4010008 LEATHER CAP

KA4010008

C9996562

C9996763A
