FLIGHT DESIGN CT2K - KB1081200 Panel Right Section (German Version)

To Next Page

To Previous Page

Chapter 1: Fuselage

Part

Number

Description

Q-ty per

ASSY

Unit

C9996161 Screw ISO 7380 M5x12 5 pcs

C9996270F Machine screw DIN 965 M4x20 A2 4 pcs

C9996332 Self-locking nut DIN 985-M4, regular 4 pcs

C9996562 Washer DIN 9021-4.3 mm VZ 4 pcs

C9997169 Lamp E10 2 pcs

C9997175 Lamp holder red 2 pcs

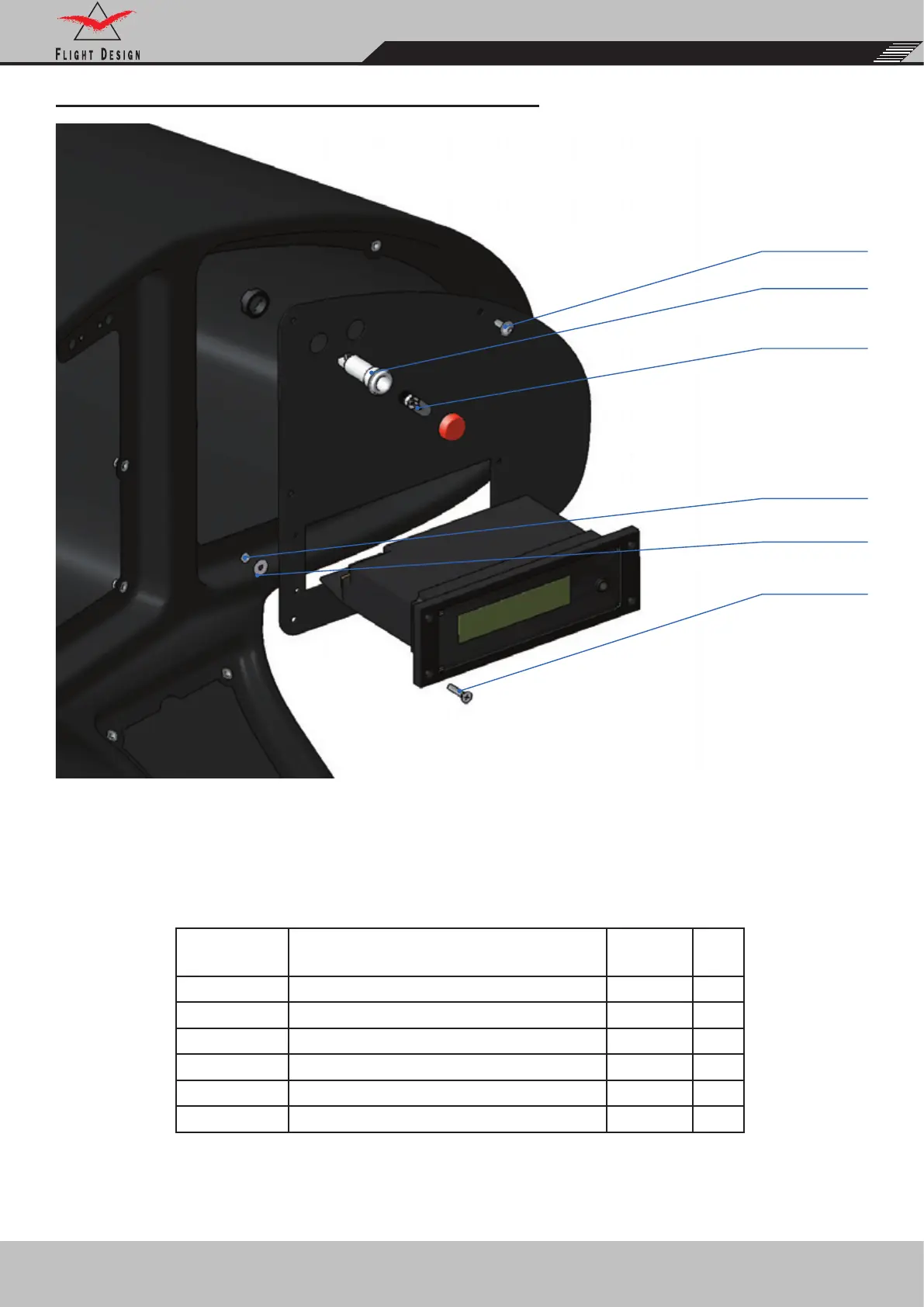

KB1081200 PANEL RIGHT SECTION (GERMAN VERSION)

C9997175

C9997169

C9996332

C9996562

C9996270F

C9996161
