FLIGHT DESIGN CT2K - C9993111 B

To Next Page

To Previous Page

Chapter 7: Systems

328

Part

Number

Description

Q-ty per

ASSY

Unit

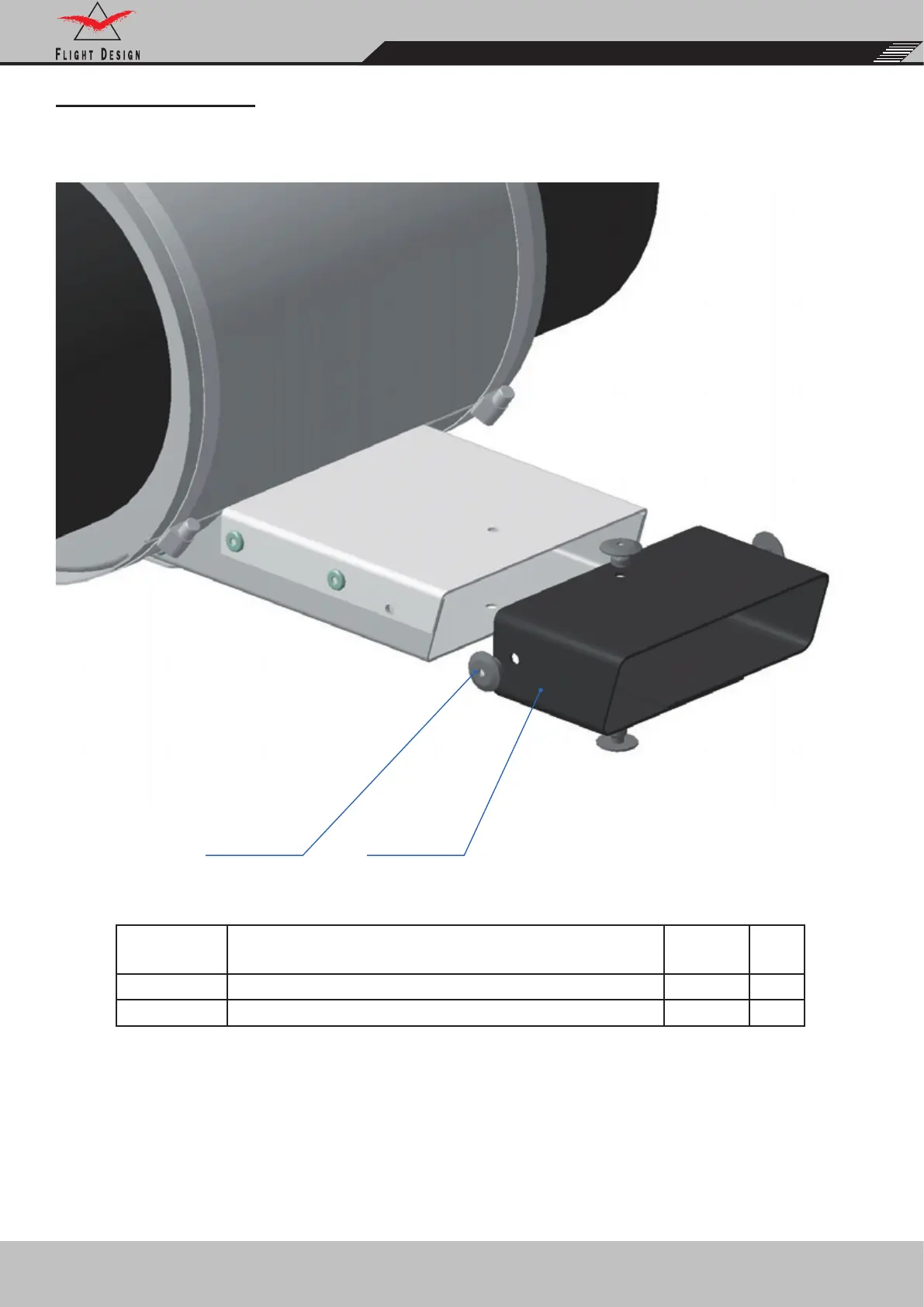

C9993111B Perbunan gasoline-proof rubber NBR 80 Gas, 2mm

0.05 sqm

C9996763A Alu / steel rivet 4.8x10.0 Art.-Nr.915 904 864 4 pcs

C9993111B - RUBBER

C9993111B

C9996763A
