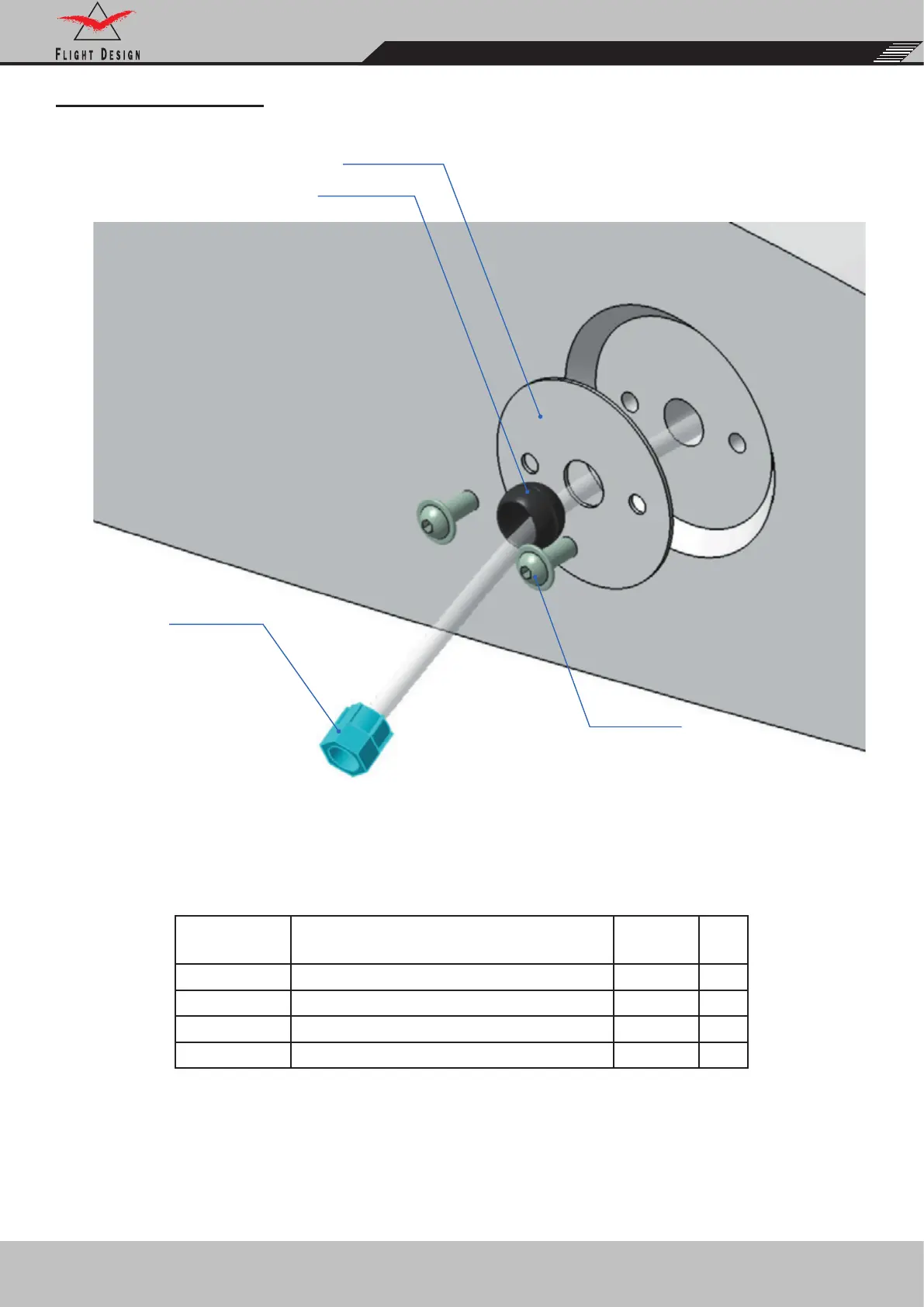

FLIGHT DESIGN CT2K - C9997417 I

To Next Page

To Previous Page

Chapter 7: Systems

370

Part

Number

Description

Q-ty per

ASSY

Unit

KA7070010 Plate 1 pcs

C9997417I Adapter A-GSV-6/4-POM-bl 1 pcs

С9996161 Screw ISO 7380 M5x12 2 pcs

С9997731E Grommet 10 mm 1 pcs

KA7070010

С9997731E

С9996161

C9997417I

ADAPTER
