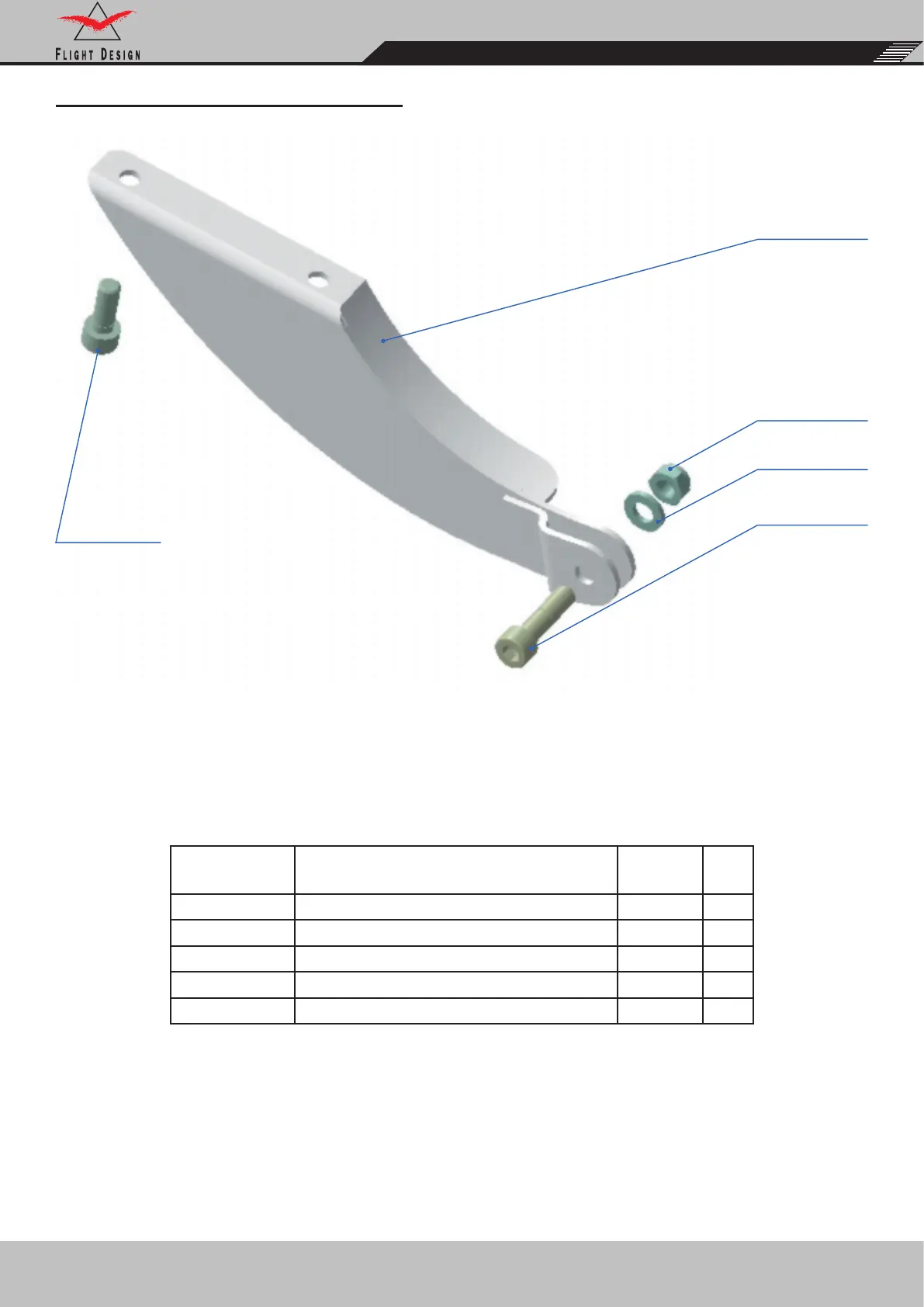

FLIGHT DESIGN CT2K - KA2010010 R Wing Pivot No1, Right

To Next Page

To Previous Page

Chapter 2: Wings

Part Number Description

Q-ty per

ASSY

Unit

KA2010010R Wing pivot No1, right 1 pcs

C9996286K Bolt DIN 912 M6x16, A2 2 pcs

C9996334 Self-locking nut DIN 985-M6, regular 1 pcs

C9996504 Washer DIN 125 A2B-6.4mm 1 pcs

C9996286P Bolt DIN 912 M6x35, A2 1 pcs

KA2010010R WING PIVOT NO1, RIGHT

KA2010010R

C9996286K

C9996334

C9996504

C9996286P
