FLIGHT DESIGN CT2K - BRS Rescue System Handle Installation

To Next Page

To Previous Page

Chapter 7: Systems

288

C9996145B

Part Number Description

Q-ty per

ASSY

Unit

C9997831B Rescue System BRS1050 1 set

C9997831C Rescue System BRS1350HS 1 set

C9996145B Bolt DIN7984 M6x16-A2 4 pcs

C9996334 Self-locking nut DIN985-M6 regular 4 pcs

C9996565 Washer DIN9021-6.4mm VZ 3 pcs

C9997798L Washer DIN125A-6.4mm 3 pcs

C9996565

C9996334

C9997798L

part of set C9997831B

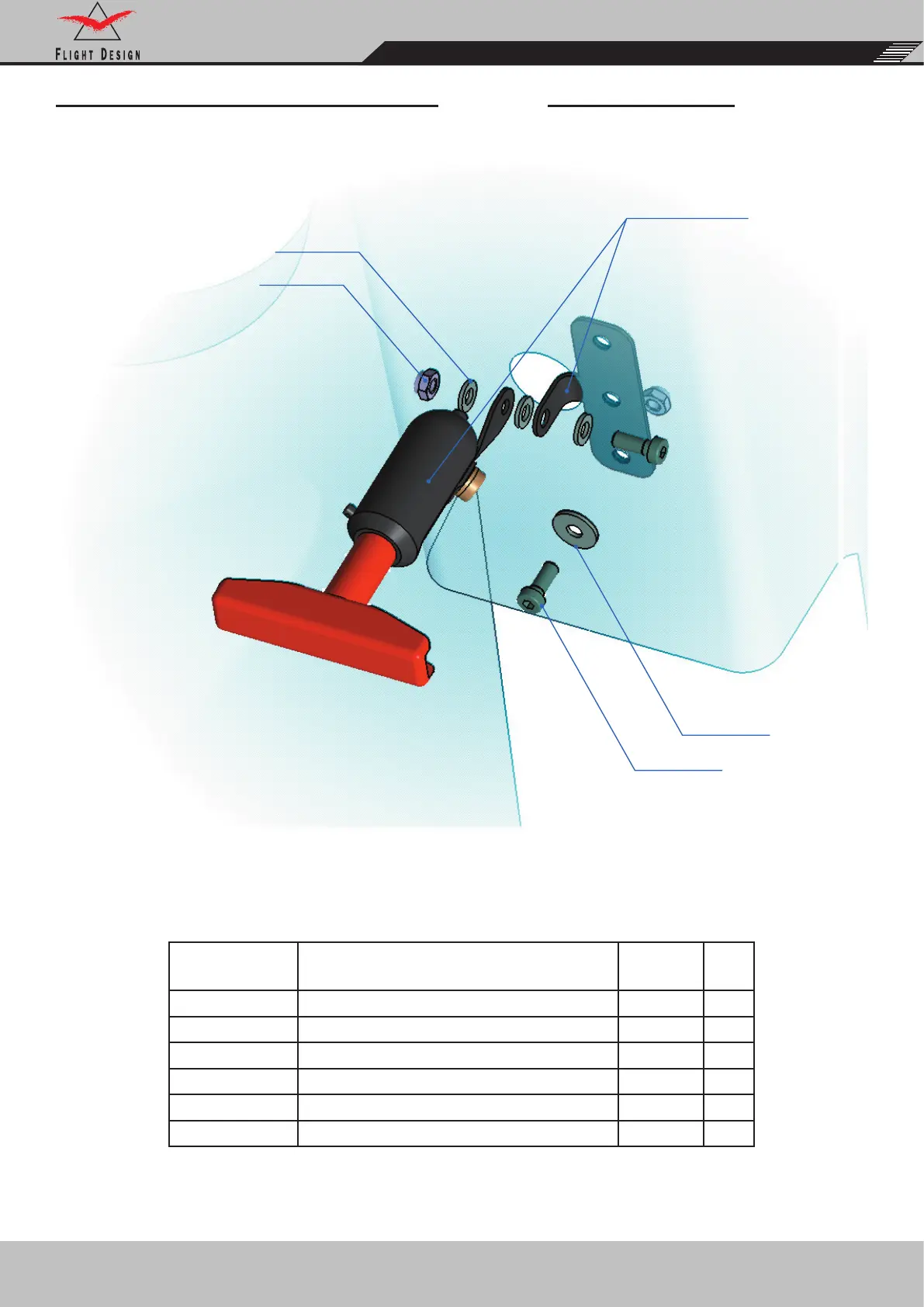

BRS RESCUE SYSTEM HANDLE INSTALLATION FIRST S/N 07-02-18

part of set C9997831C
