Chapter 1: Fuselage

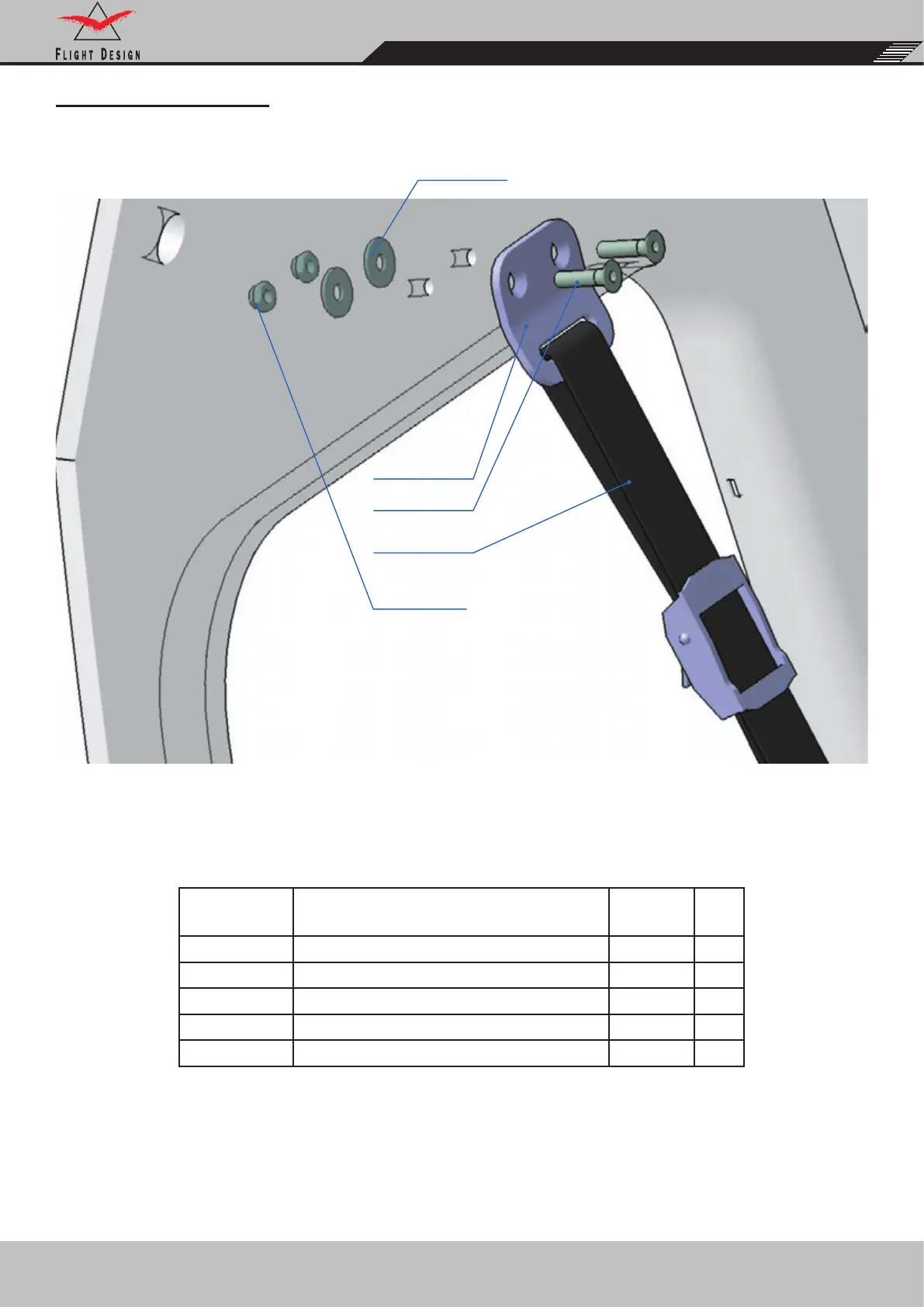

KA1060004 BELT EYES

Part

Number

Description

Q-ty per

ASSY

Unit

KA1060004 Belt eye 1 pcs

KA1060010 Belt 1 pcs

C9996208K Bolt DIN 7991 M5x25-8.8 2 pcs

C9996333 Self-locking nut DIN 985-M5, regular 2 pcs

C9996503 Washer DIN 125 A2-5.3mm 2 pcs

KA1060004

C9996208K

KA1060010

C9996333

C9996503
