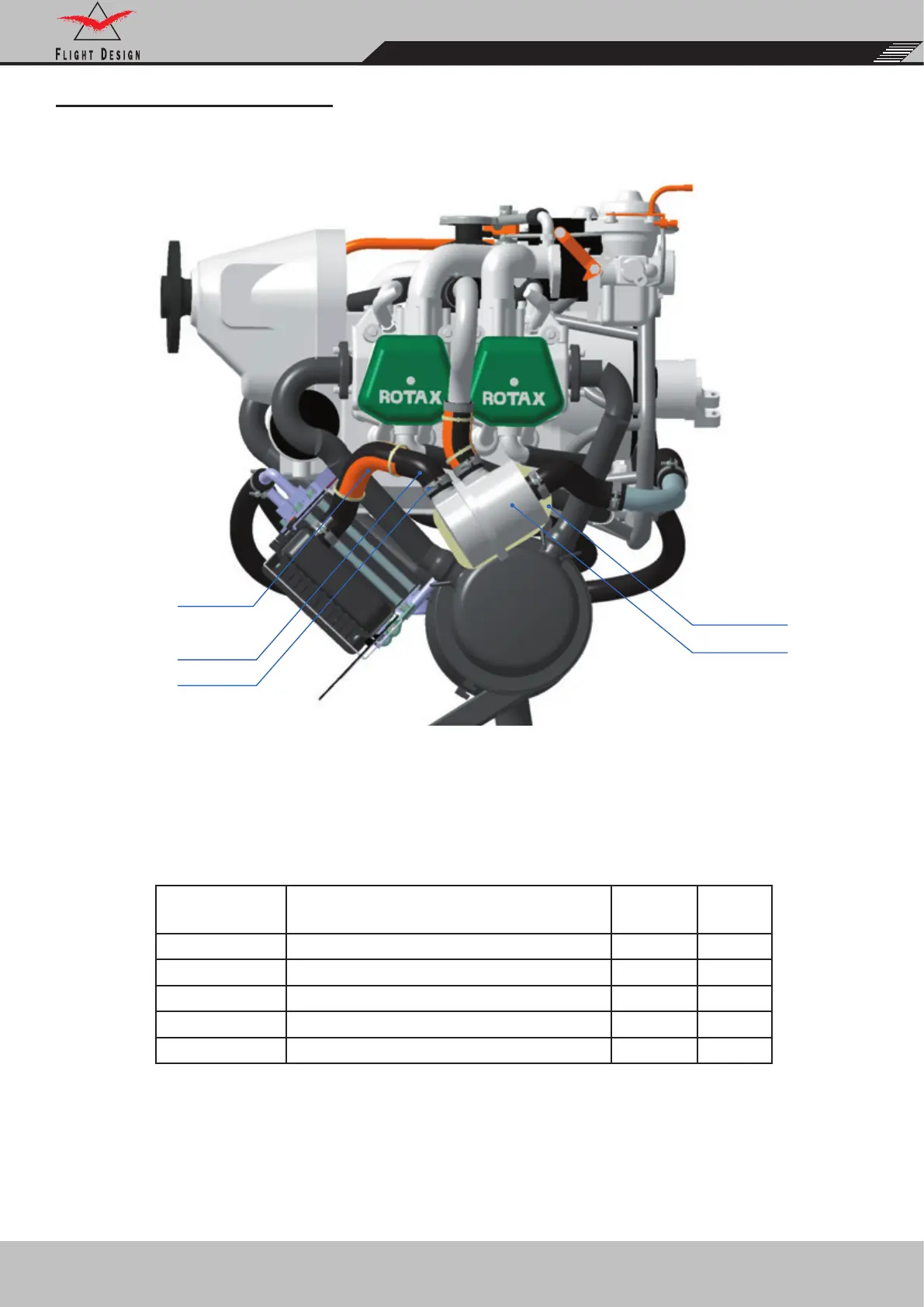

FLIGHT DESIGN CT2K - C9997794 G Thermostat

To Next Page

To Previous Page

Chapter 5: Power Plant

157

KA5040201

C9993189G

C9997715

C9993186A

C9997794G

Part Number Description

Q-ty per

ASSY

Unit

KA5040201 Screen, Thermostat 1 pcs

C9993186A Hose DIN 73411 25x3.5mm 0.55 m

C9997715 Clamp 25-40mm 6 pcs

C9993189G Fire protection hose, red 0.48 m

C9997794G Thermostat 90C 1 pcs

C9997794G

THERMOSTAT 90C
