FLIGHT DESIGN CT2K - KA7030100 - Master Brake Cylinder

To Next Page

To Previous Page

Chapter 7: Systems

314

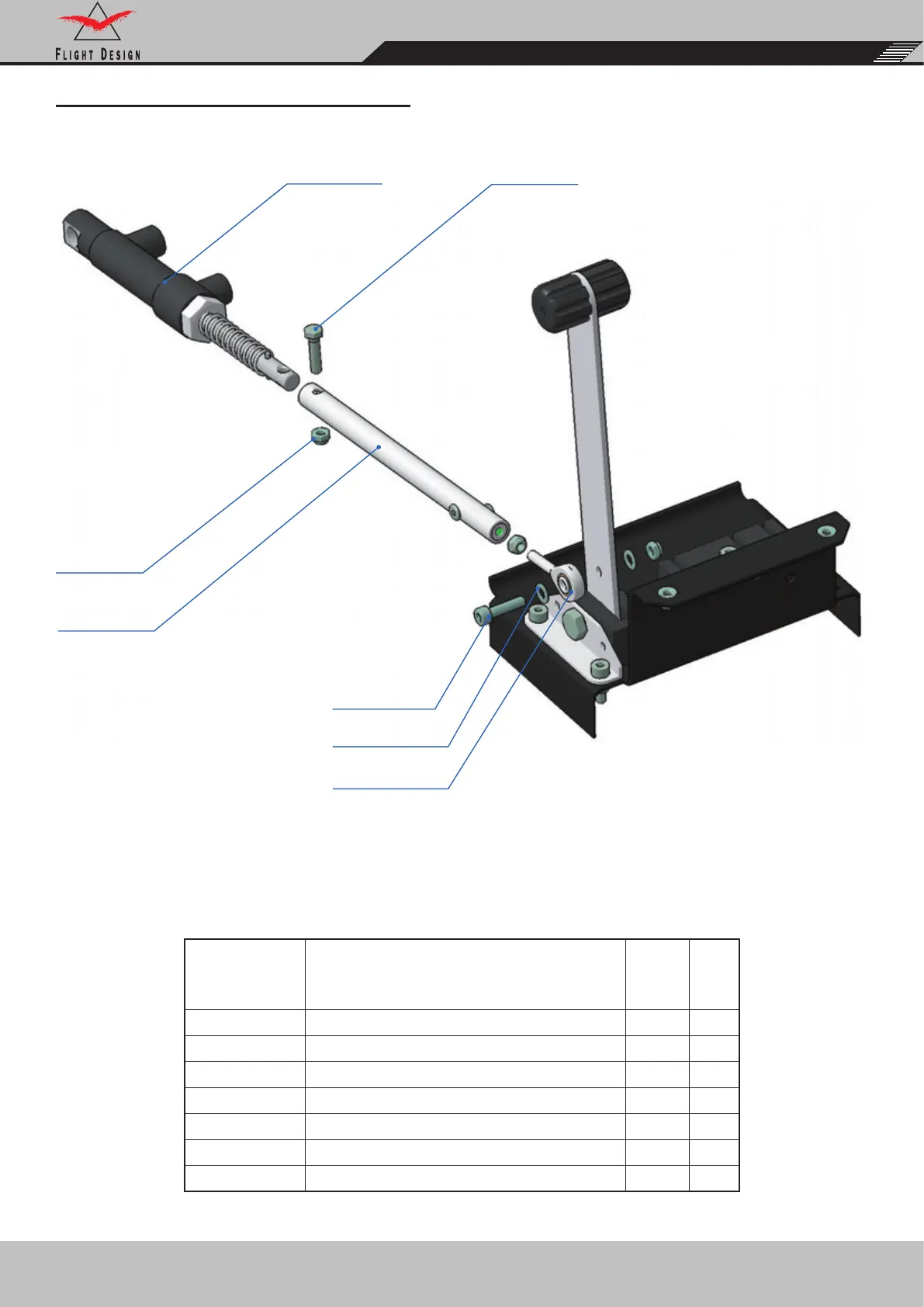

KA7030100 - MASTER BRAKE CYLINDER

Part

Number

Description

Q-ty

per

ASSY

Unit

KA7030020 Rod 1 pcs

KA7030100 Brake cylinder 1 pcs

C9996037 Bolt DIN 912 M5x20-8.8 1 pcs

C9996283C Bolt DIN 933 M5x20-8.8 1 pcs

C9996333 Self-locking nut DIN 985-M5, regular 3 pcs

C9996503 Washer DIN 125 A2-5.3mm 2 pcs

C9997006C Rod end bearing, ext. thread GA5 1 pcs

C9996333

KA7030020

KA7030100

C9996037

C9996283C

C9996503

C9997006C
