FLIGHT DESIGN CT2K - Check Valve, Installation

To Next Page

To Previous Page

Chapter 7: Systems

320

C9997208V

С9997257K

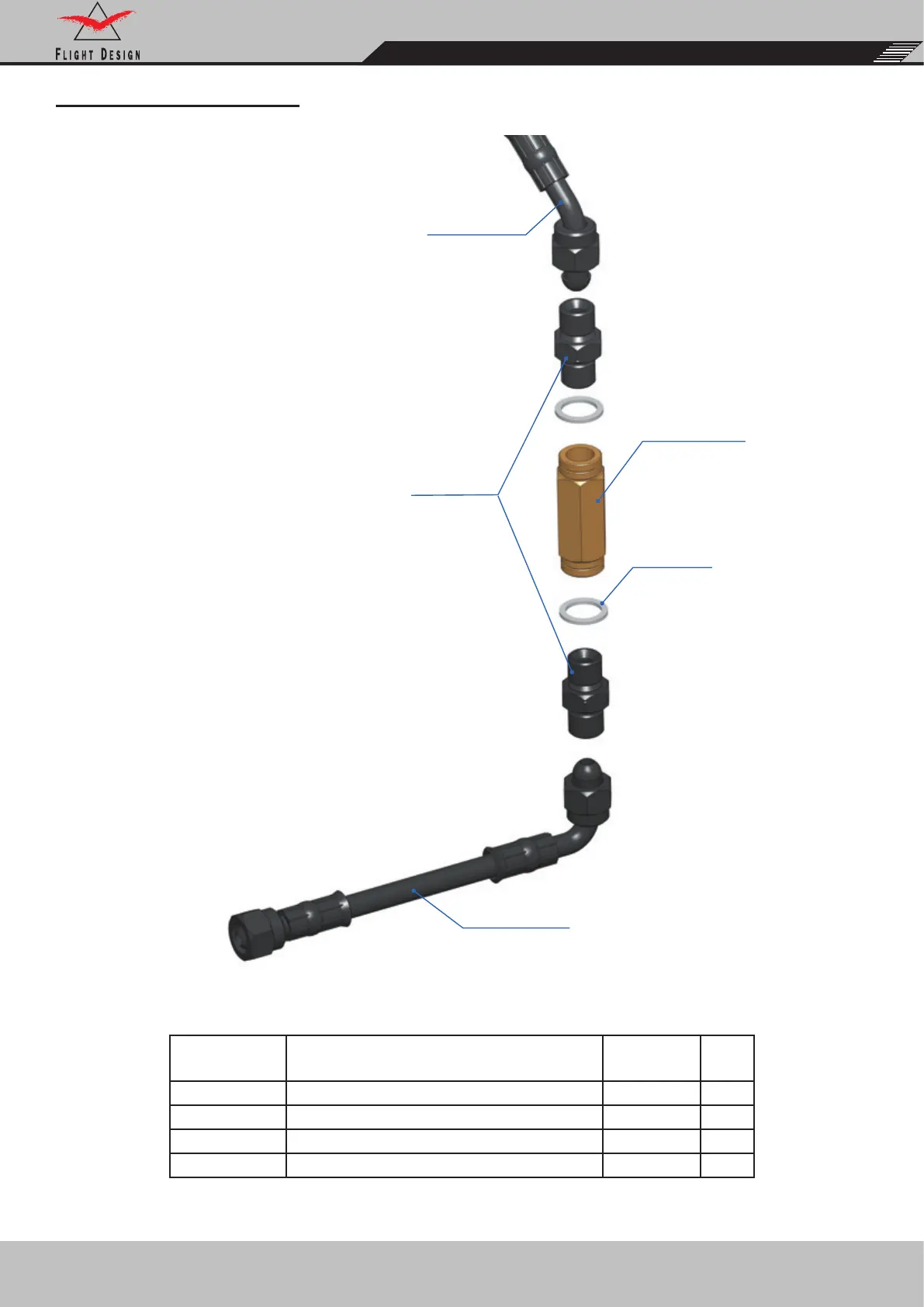

CHECK VALVE, INSTALLATION

C9997208Q

C9997208N

Part

Number

Description

Q-ty per

ASSY

Unit

C9997208N Joint FT0307 3 pcs

C9997208Q Hose with ﬁtting L= 150 1 pcs

C9997208V Hose with ﬁttings L=110 1 pcs

C9997208T Washer 10mm 11 set

C9997208T
