FLIGHT DESIGN CT2K - Tunnel & Pyramid Hatches

To Next Page

To Previous Page

Chapter 1: Fuselage

Part

Number

Description

Q-ty per

ASSY

Unit

KA1000902 Tunnel hatch 180x152 1 pcs

KA1000903 Tunnel hatch 315x148 1 pcs

KA1002310 Forward pyramid hatch 2 pcs

KA1002320 Rear pyramid hatch 2 pcs

C9996025 Bolt DIN 912 M4x16-8.8 8 pcs

C9996161 Screw ISO 7380 M5x12 7 pcs

C9996562 Washer DIN 9021-4.3 mm VZ 8 pcs

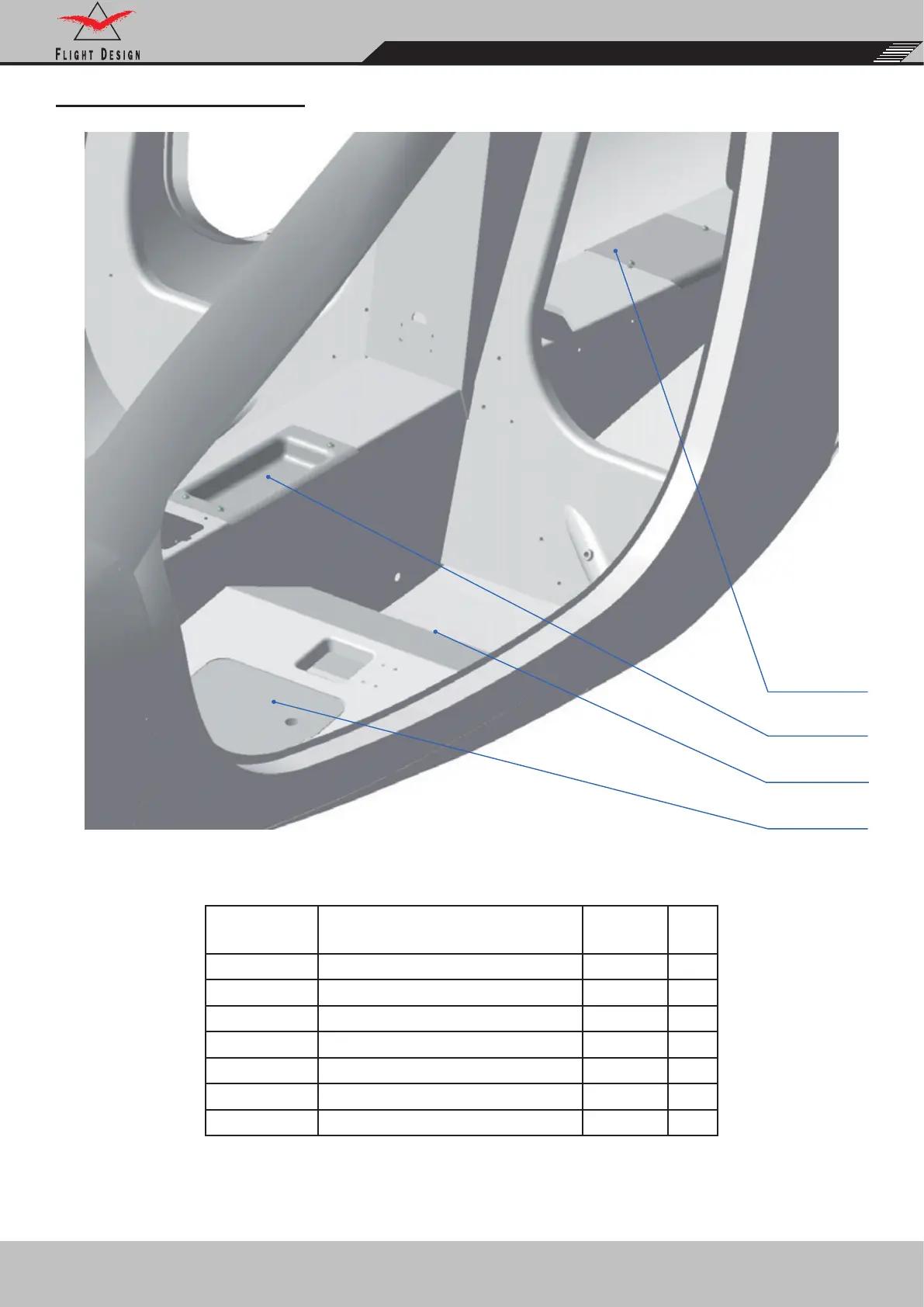

TUNNEL & PYRAMID HATCHES

KA1000903

KA1002310

KA1002320

KA1000902
