FLIGHT DESIGN CT2K

To Next Page

To Previous Page

Chapter 7: Systems

290

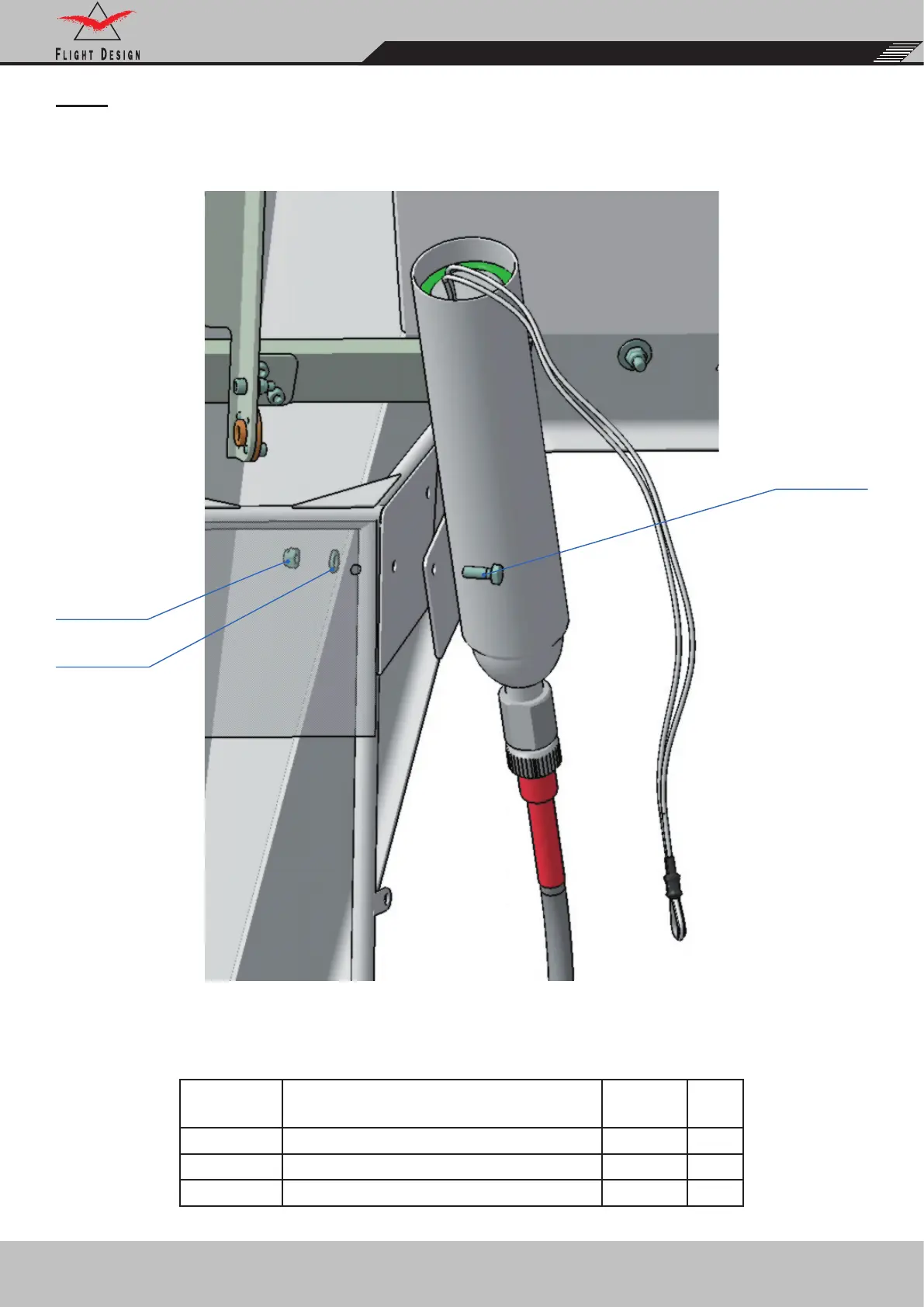

SQUIB

Part

Number

Description

Q-ty per

ASSY

Unit

C9996284 Bolt DIN 933 M6x16-8.8 2 pcs

C9996334 Self-locking nut DIN 985-M6, regular 2 pcs

C9996504 Washer DIN 125 A2B-6.4mm 2 pcs

C9996284

C9996334

C9996504
