FLIGHT DESIGN CT2K - KA7070020 - Flange Installation

To Next Page

To Previous Page

Chapter 7: Systems

371

Part

Number

Description

Q-ty per

ASSY

Unit

KA7070020 Static Port 1 set

KS7070101 Flange 1 pcs

KS7070102 Nut 1 pcs

KS7070103 Washer 1 pcs

KS7070104 Sealing washer 1 pcs

C9997417E Fuel L-adapter A-Wek-6/4-1/8-MSv 1 pcs

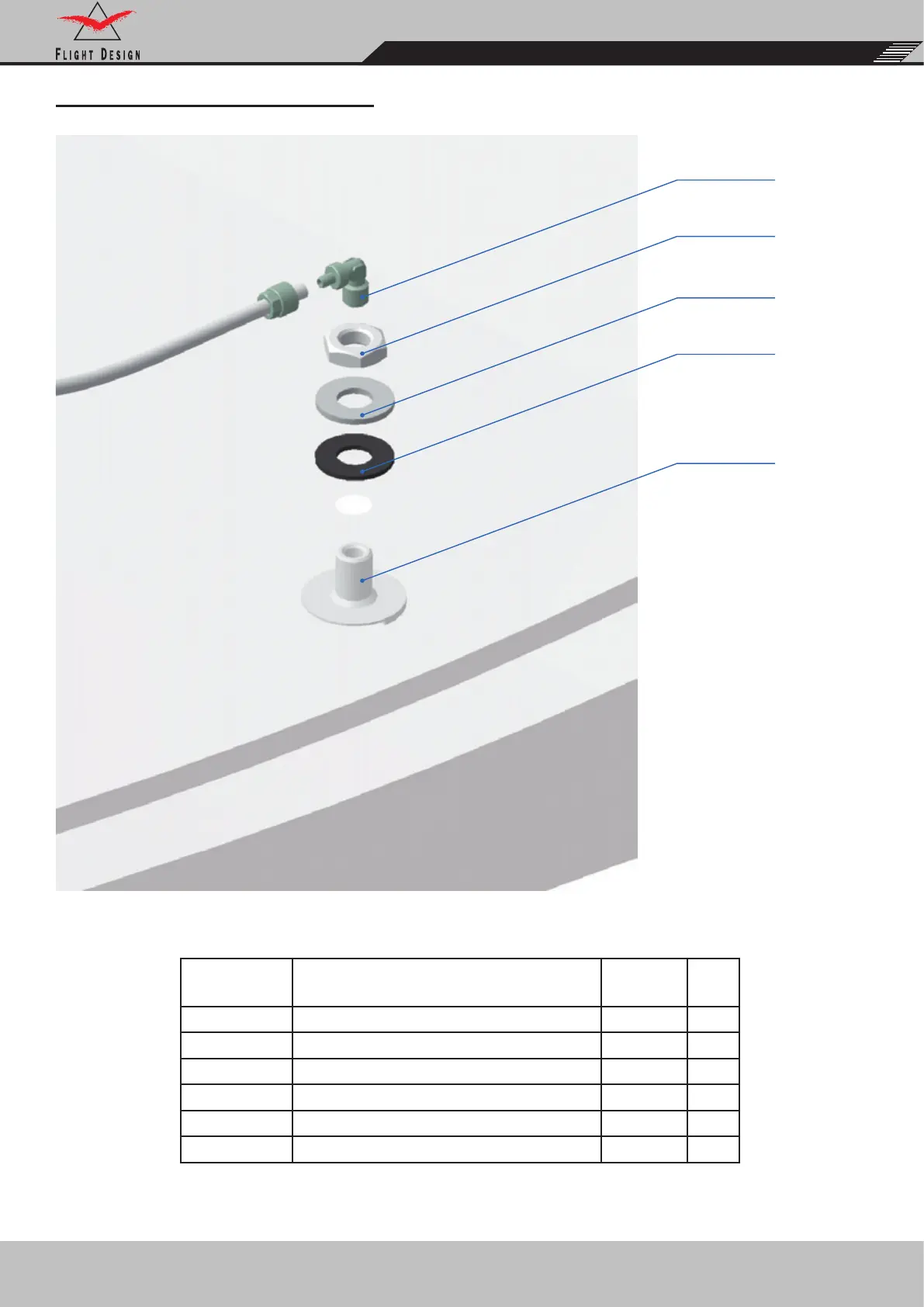

KA7070020 - FLANGE INSTALLATION

C9997417E

KS7070101

KS7070102

KS7070103

KS7070104
