FLIGHT DESIGN CT2K - KA2040010 Flap Pivot No1

To Next Page

To Previous Page

Chapter 2: Wings

Part Number Description

Q-ty per

ASSY

Unit

KA2040010L Flap pivot No1, left 1 pcs

KA2040010R Flap pivot No1, right 1 pcs

KA2040013 Pin 1 pcs

C9996035 Bolt DIN 912 M5x16-8.8 1 pcs

C9996221 Bolt DIN C9997991 M5x16 A2 3 pcs

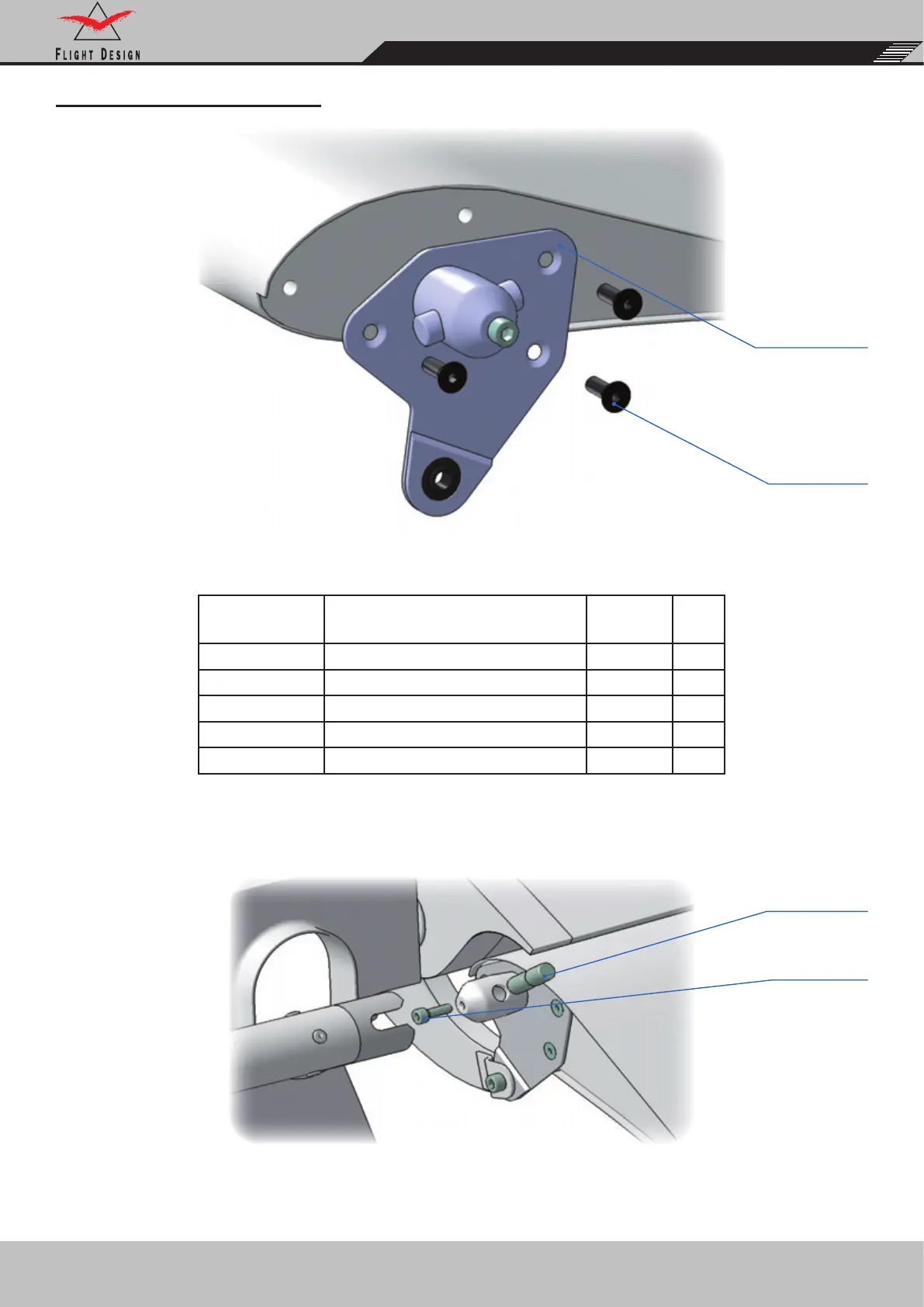

KA2040010 FLAP PIVOT NO1

KA2040010L

KA2040010R

C9996221

KA2040013

C9996035
