FLIGHT DESIGN CT2K - Branch Installation

To Next Page

To Previous Page

Chapter 7: Systems

322

Part Number Description

Q-ty per

ASSY

Unit

C9993193B PVC hose 8x2mm 0.224 m

C9997731E Grommet 10 mm 2 m

Part Number Description

Q-ty per

ASSY

Unit

C9997206 Caliper drain valve 1 pcs

C9997417E Fuel L-adapter A-Wek-6/4-1/8-MSv 4 pcs

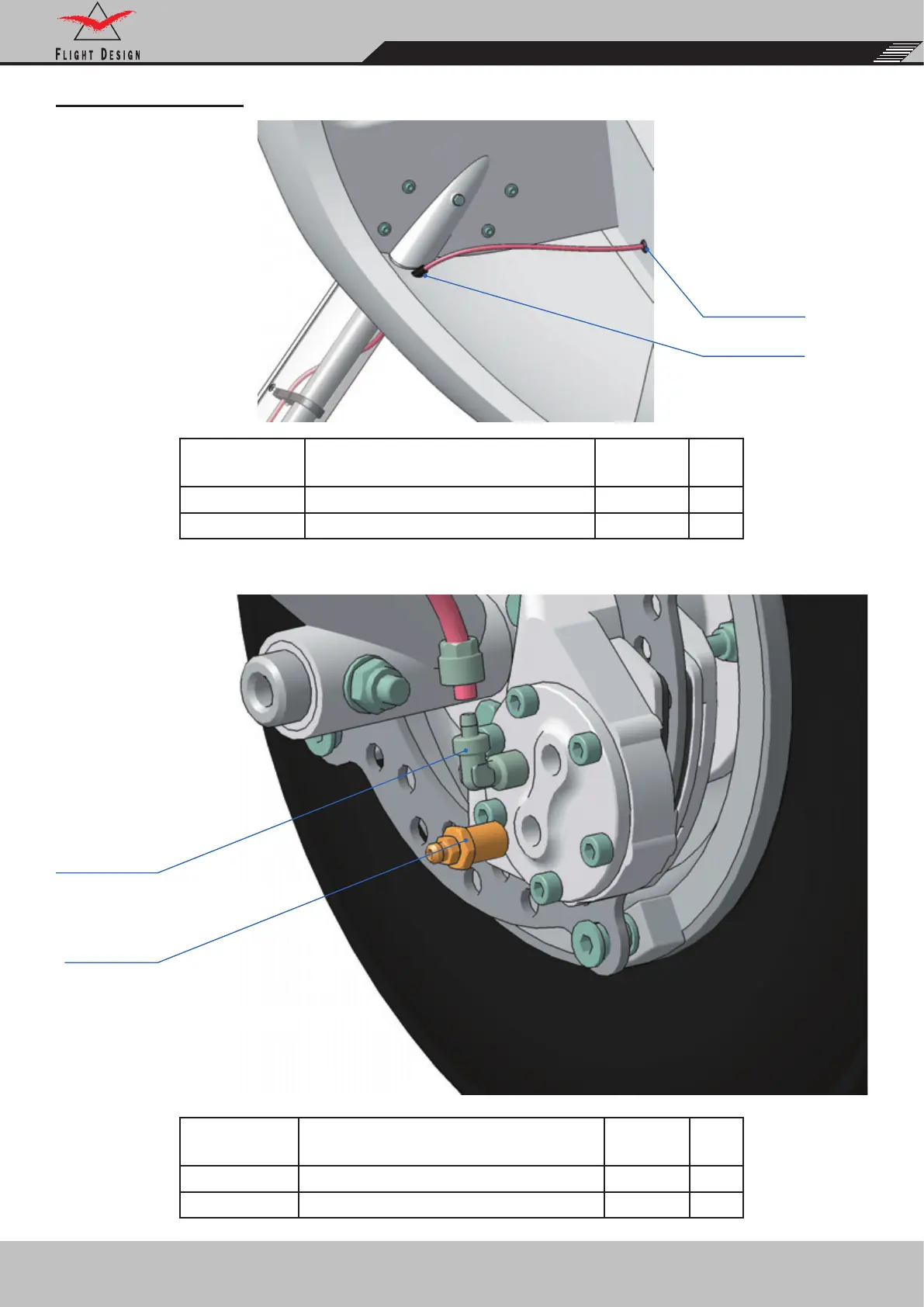

BRANCH INSTALLATION

C9997206

C9997417E

C9993193B

C9997731E
