FLIGHT DESIGN CT2K - Safety Belts Mounting, Upper

To Next Page

To Previous Page

Chapter 1: Fuselage

Part

Number

Description

Q-ty per

ASSY

Unit

KA1070001 Buckle 2 pcs

C9996218 Bolt DIN 7991 M6x30-8.8 3 pcs

C9996219 Bolt DIN 7991 M6x35 A2 1 pcs

C9996334 Self-locking nut DIN 985-M6, regular 4 pcs

C9996504 Washer DIN 125 A2B-6.4mm 1 pcs

C9996565 Washer DIN 9021-6.4mm VZ 3 pcs

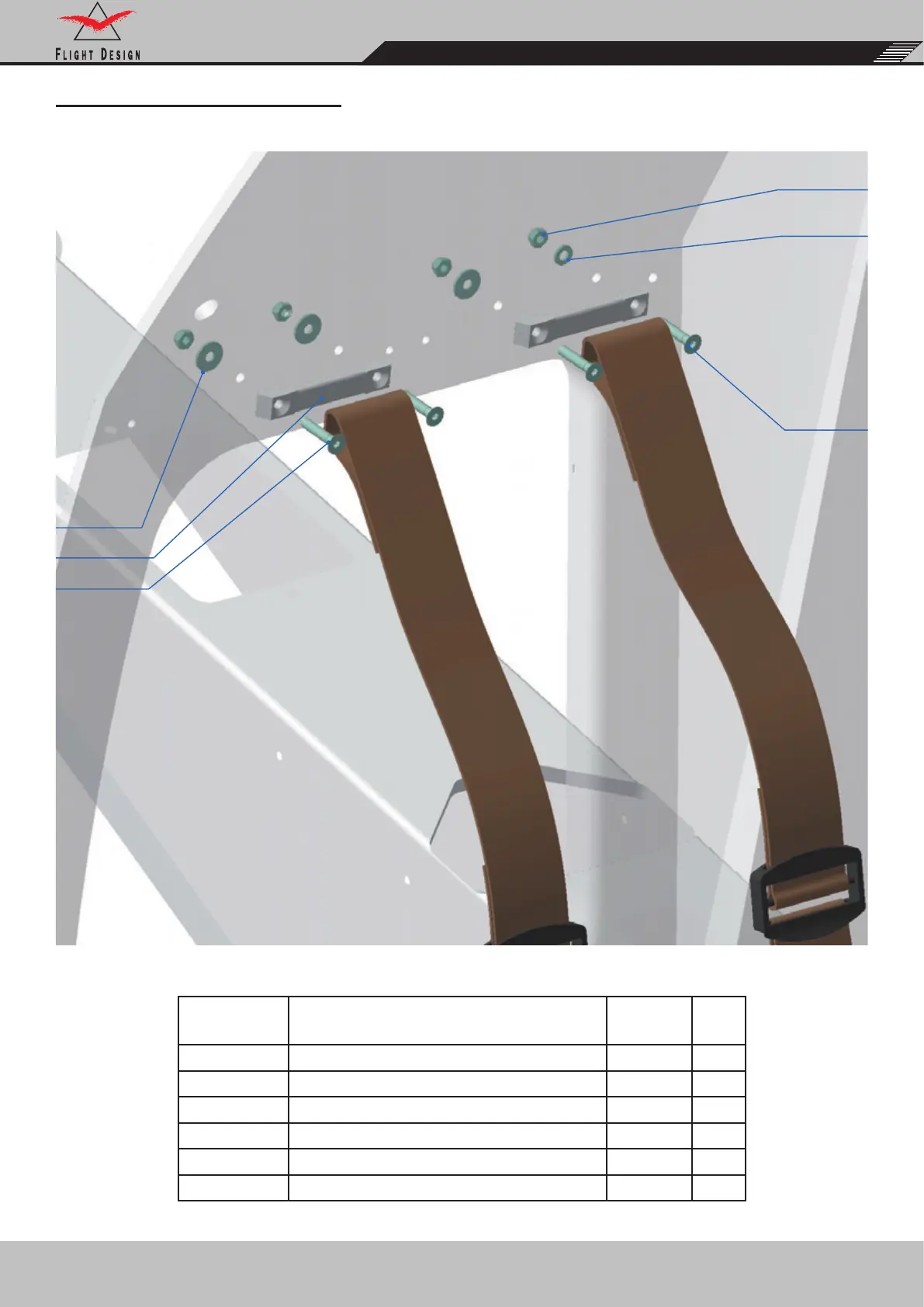

SAFETY BELTS MOUNTING, UPPER

KA1070001

C9996218

C9996219

C9996334

C9996504

C9996565
