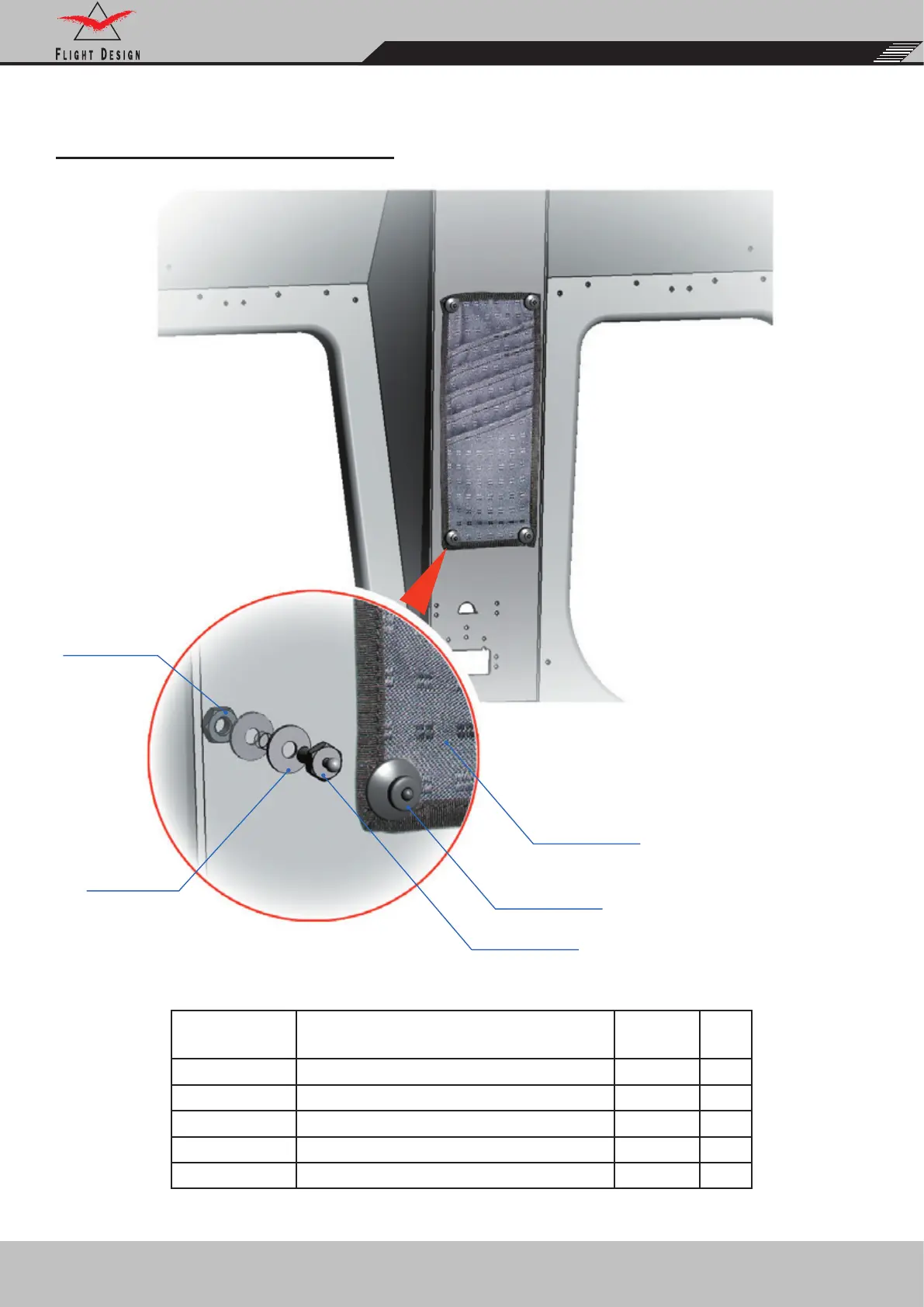

FLIGHT DESIGN CT2K - Pocket for Maps; KA1000470

To Next Page

To Previous Page

Chapter 1: Fuselage

C9997541A

C9996232A

C9996563

C9996834B

KA1000460

Part Number Description

Q-ty per

ASSY

Unit

KA1000460 Map For Pocket 1 set

C9996232A Tenax Scraube M5x10mm 4 pcs

C9996563 Washer DIN 9021-5.3mm VZ 8 pcs

C9996834B Screw M5-A2 DIN 439 4 pcs

C9997541A Button 01 4 pcs

KA1000470 - M

OCKET

OUNTING

Set of Pockets For Map
