FLIGHT DESIGN CT2K - KA6020040

To Next Page

To Previous Page

Chapter 6: Flight Control

213

Part Number Description

Q-ty per

ASSY

Unit

KA6020041L Upper plate 1 pcs

KA6020041R Upper plate 1 pcs

KA6020042 Body 2 pcs

KA6020043 Lower plate 2 pcs

KA6020045 Bush 1 pcs

C9996204 Bolt DIN 7991 M4x16-10,9 3 pcs

C9997024 Bearing SKF 686 2 Z 2 pcs

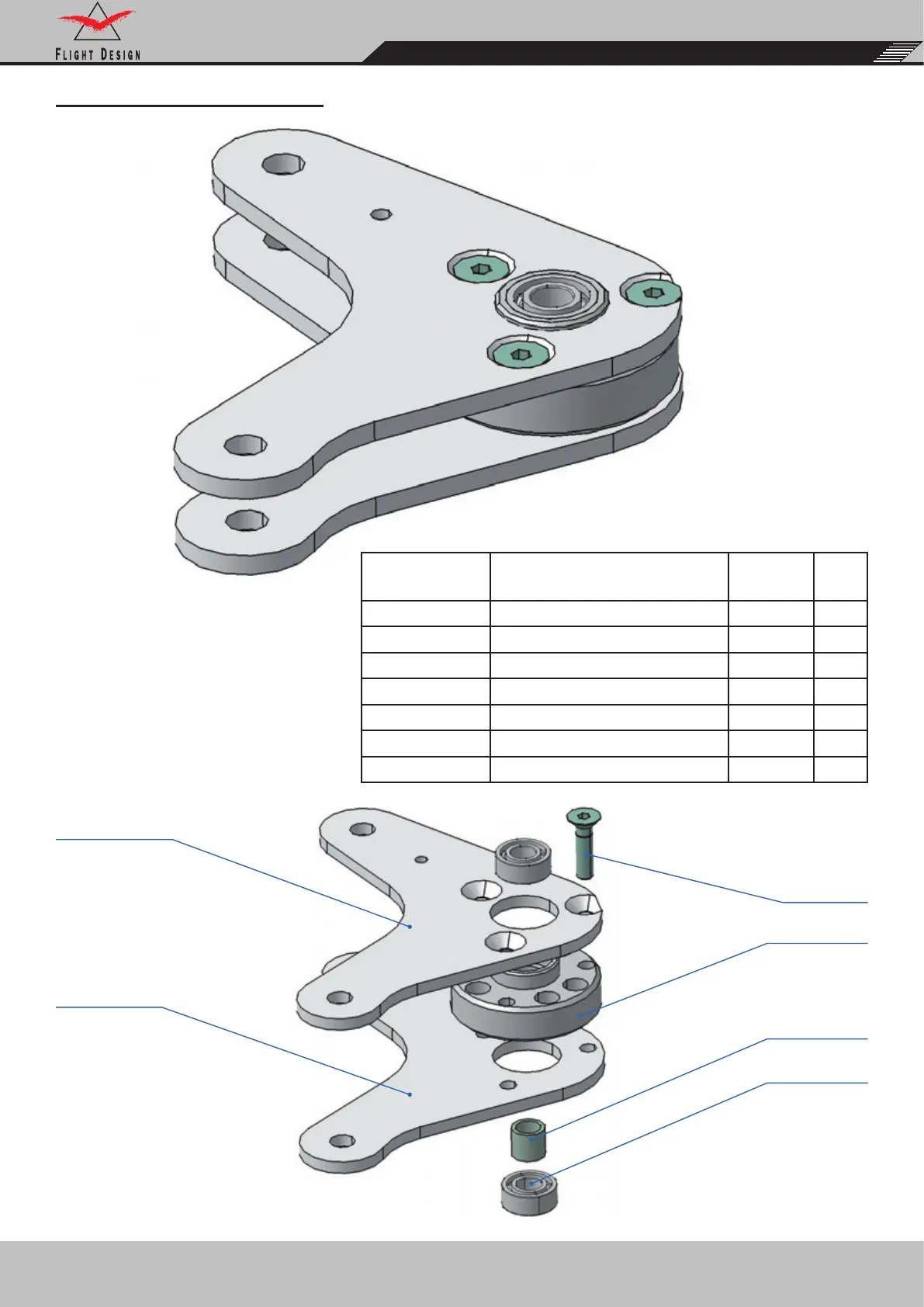

KA6020040 - OUTER ROCKER

KA6020045

C9996204

KA6020041L

KA6020041R

C9997024

KA6020042

KA6020043
