FLIGHT DESIGN CT2K - KA7020052

To Next Page

To Previous Page

Chapter 7: Systems

298

Part

Number

Description

Q-ty per

ASSY

Unit

KA7020051 Reﬁll cap 1 pcs

KA7020052 Reﬁll cap ﬂange 1 pcs

KA7020053 Rubber seal ring 1 pcs

KA7020060 Vent 1 pcs

C9996207 Bolt DIN 7991 M5x16-8.8 4 pcs

C9996334 Self-locking nut DIN 985-M6, regular 1 pcs

C9997730L O-Ring Material Viton 1 pcs

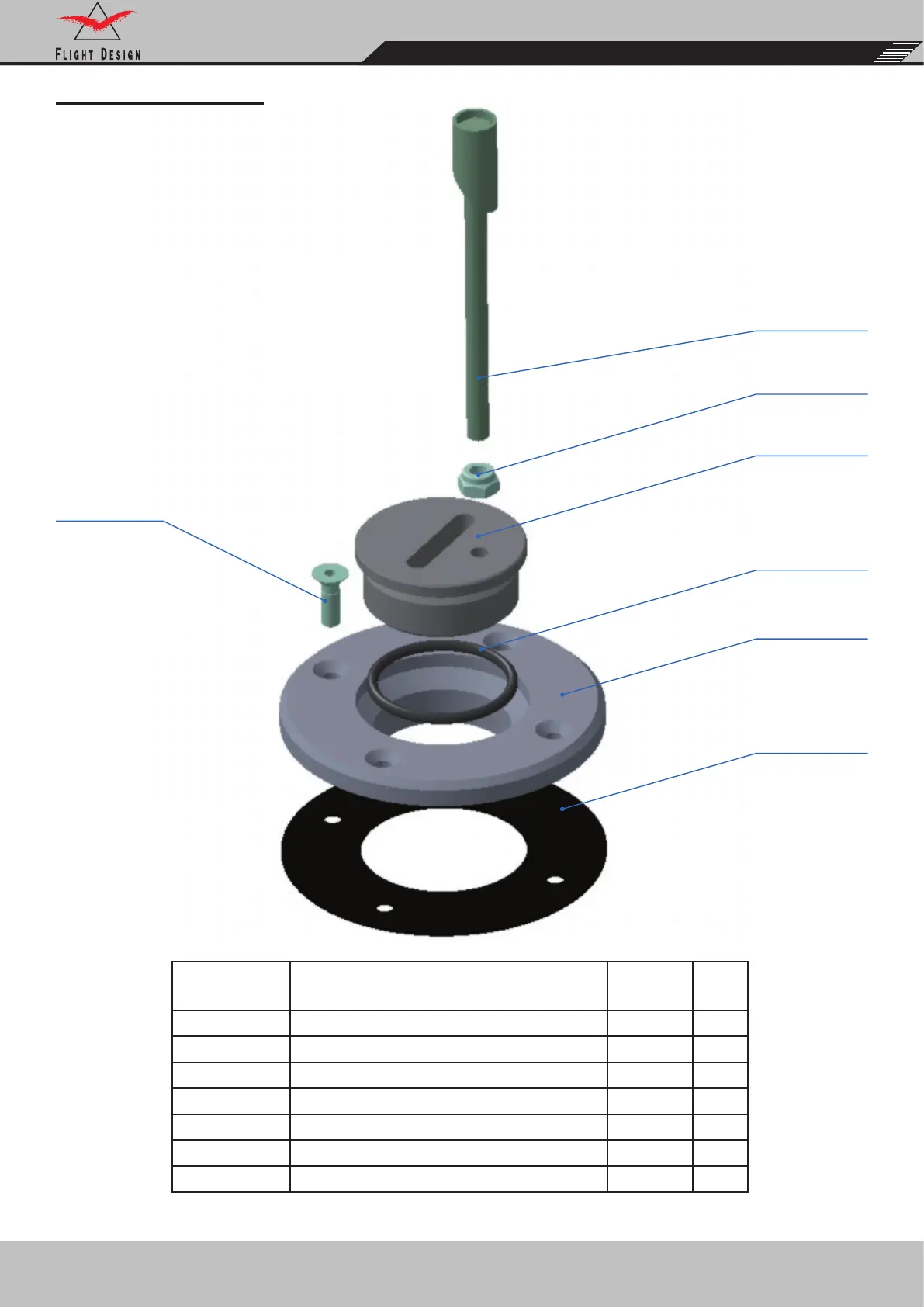

KA7020052 - Tank Filler

C9996207

C9997730L

KA7020051

KA7020052

KA7020053

KA7020060

C9996334
