FLIGHT DESIGN CT2K - KA6020030

To Next Page

To Previous Page

Chapter 6: Flight Control

212

Part Number Description

Q-ty per

ASSY

Unit

KA6020031 Tip 2 pcs

KA6020032 Tube 1 pcs

KA6020033 Tube 1 pcs

С9996334 Self-locking nut DIN 985-M6, regular 2 pcs

C9996650 Stainl. steel rivet A2 4x7.5 4 pcs

С9997006A Rod end bearing, ext. thread GA6 2 pcs

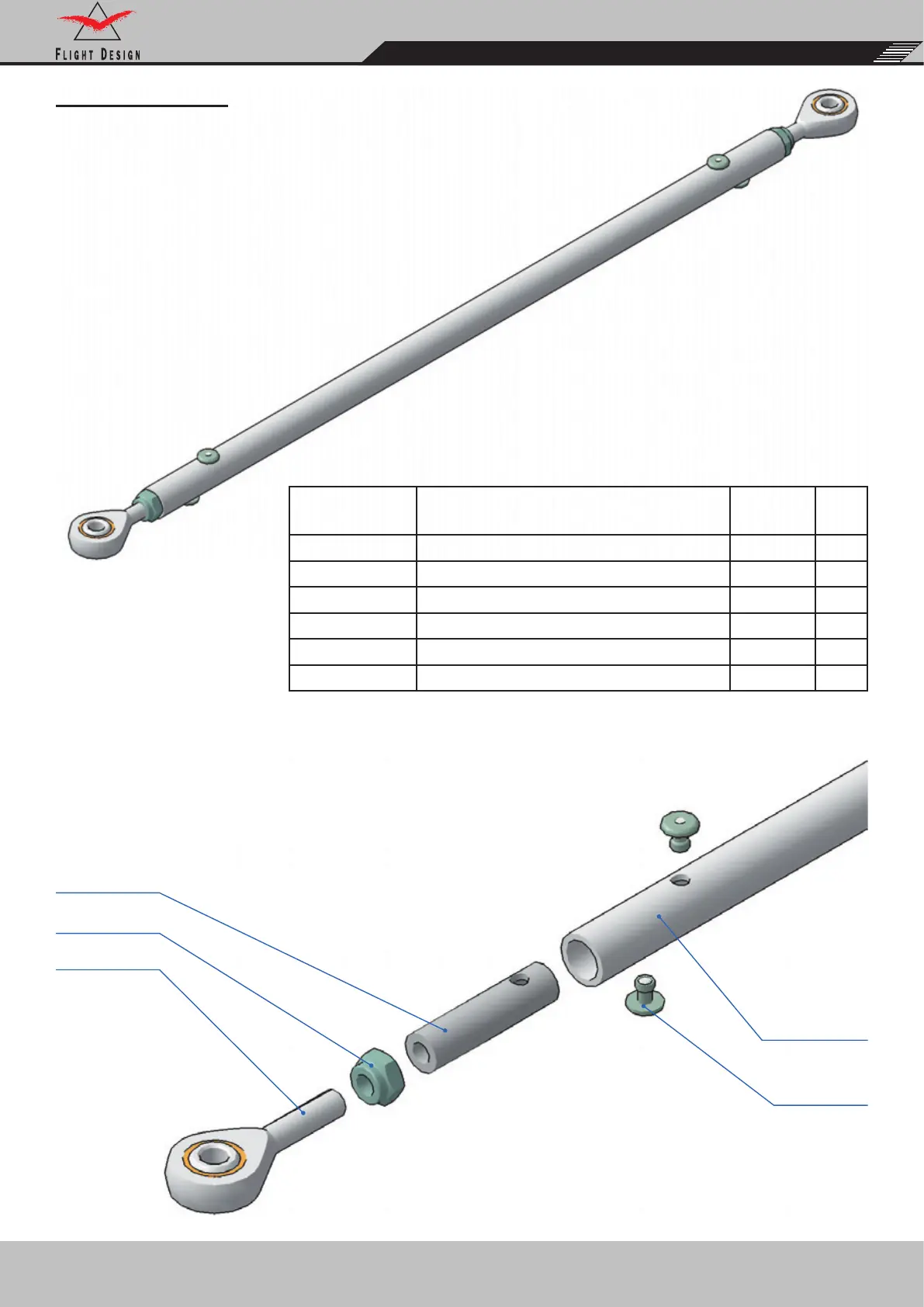

KA6020030 - ROD

С9996334

KA6020031

C9996650

KA6020032

KA6020033

С9997006A
