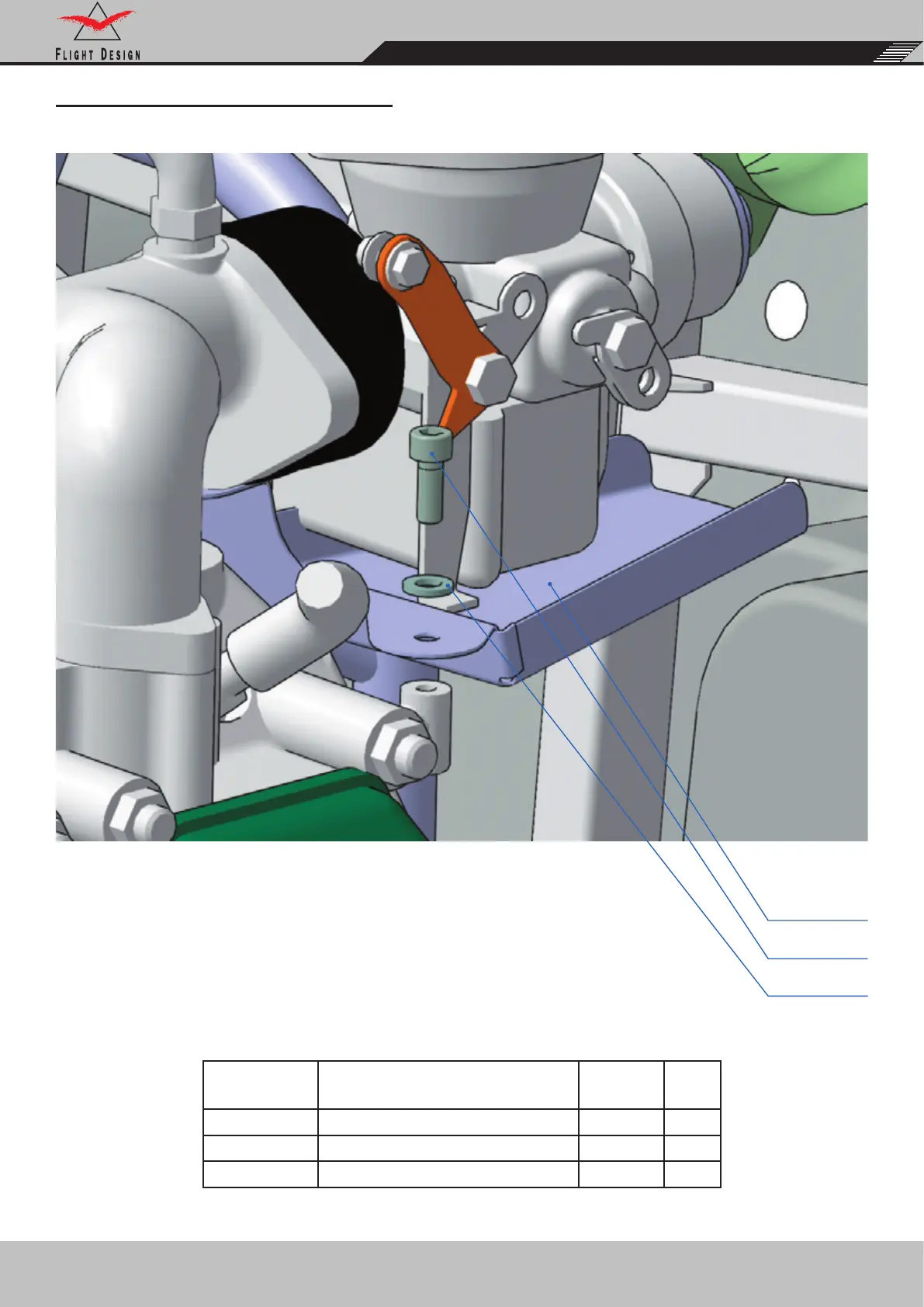

FLIGHT DESIGN CT2K - KA5030001 Protection Plate, Left

To Next Page

To Previous Page

Chapter 5: Power Plant

139

Part

Number

Description

Q-ty per

ASSY

Unit

KA5030001 Protection plate, left 1 pcs

C9996053 Bolt DIN 912 M6x10-8.8 1 pcs

C9996504 Washer DIN 125 A2B-6.4mm 1 pcs

KA5030001 PROTECTION PLATE, LEFT

KA5030001

C9996053

C9996504
