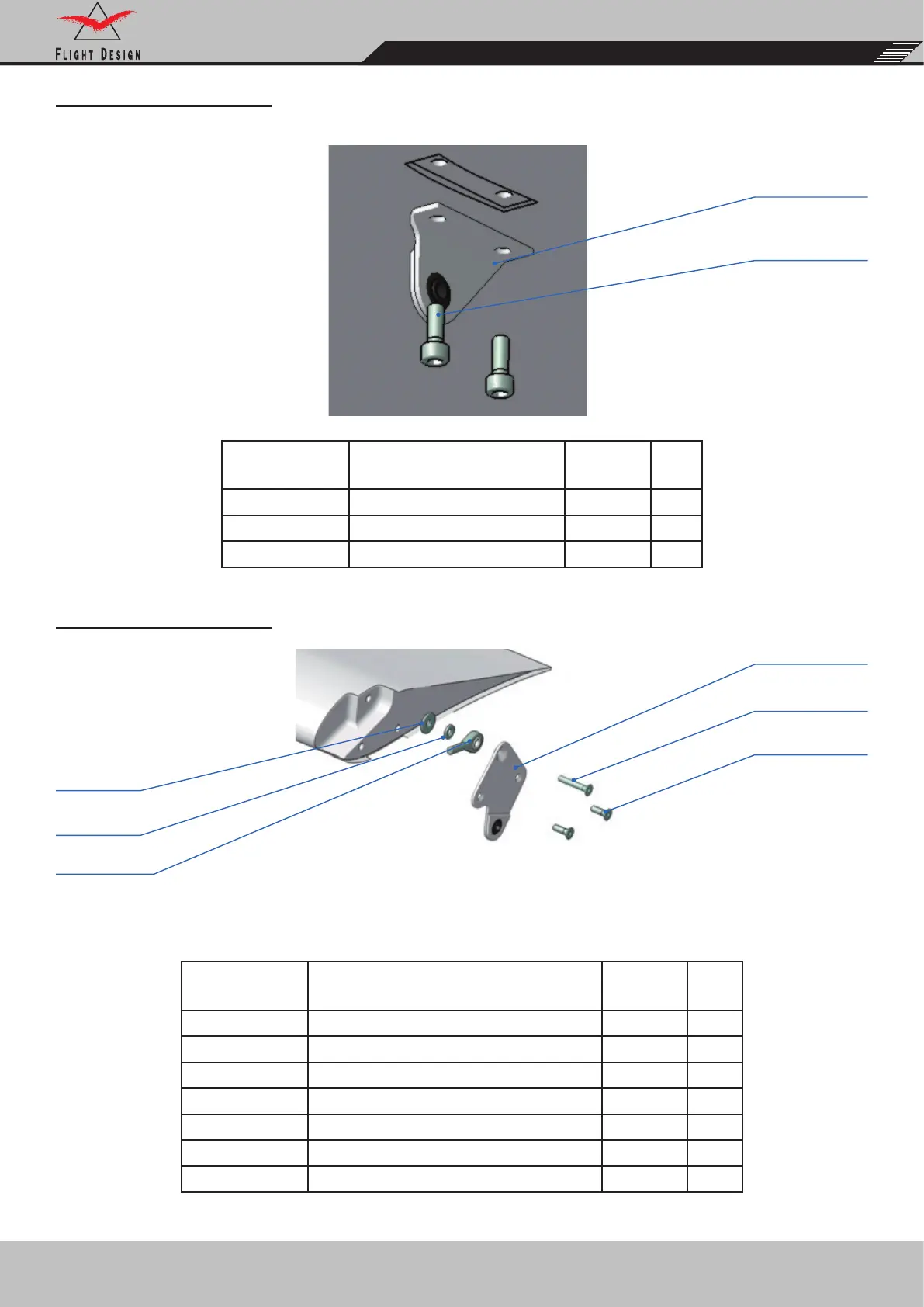

FLIGHT DESIGN CT2K - KA2030020 Pivot No2; KA2030010 Pivot No1

To Next Page

To Previous Page

Chapter 2: Wings

Part Number Description

Q-ty per

ASSY

Unit

KA2030010L Aileron pivot No1, left 1 pcs

KA2030010R Aileron pivot No1, right 1 pcs

C9996220 Bolt DIN C9997991 M6x55-8.8 1 pcs

C9996221 Bolt DIN C9997991 M5x16 A2 2 pcs

C9996504 Washer DIN 125 A2B-6.4mm 1 pcs

C9996565 Washer DIN 9021-6.4mm VZ 1 pcs

C9997006A Rod end bearing, ext. thread GA6 1 pcs

Part Number Description

Q-ty per

ASSY

Unit

KA2030020L Aileron pivot No2, left 1 pcs

KA2030020R Aileron pivot No2, right 1 pcs

C9996286K Bolt DIN 912 M6x16, A2 2 pcs

KA2030020 PIVOT NO2

KA2030010 PIVOT NO1

KA2030020L

KA2030020R

C9996286K

KA2030010L

KA2030010R

C9996220

C9996221

C9996504

C9996565

C9997006A
