FLIGHT DESIGN CT2K - KA1070000

To Next Page

To Previous Page

Chapter 1: Fuselage

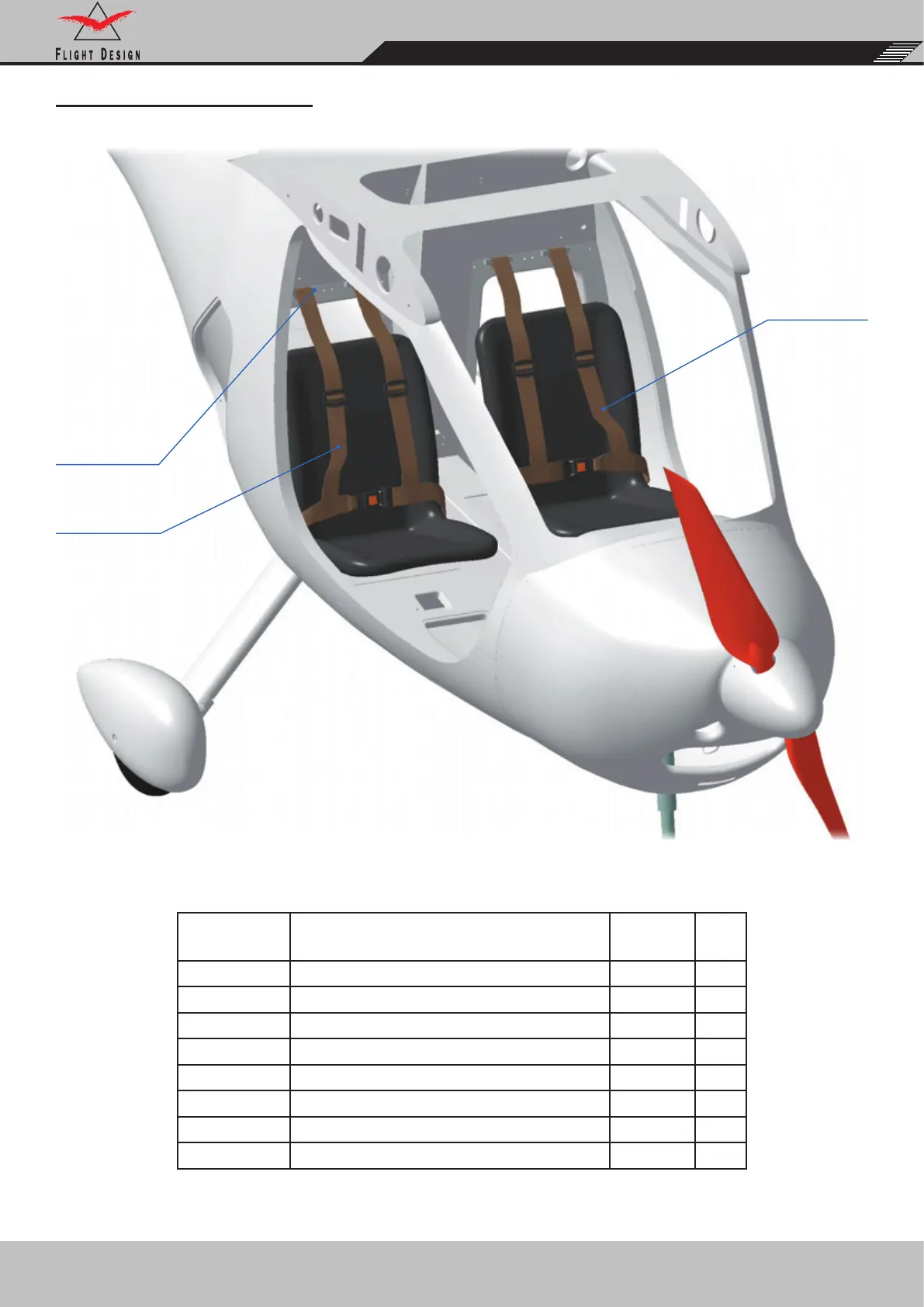

KA1070000 - SAFETY BELTS

Part

Number

Description

Q-ty per

ASSY

Unit

KA1070001 Buckle 8 pcs

KA1070110

Safety belt, left 2 pcs

KA1070120 Safety belt, right 2 pcs

C9996218 Bolt DIN 7991 M6x30-8.8 14 pcs

C9996219 Bolt DIN 7991 M6x35 A2 2 pcs

C9996334 Self-locking nut DIN 985-M6, regular 16 pcs

C9996504 Washer DIN 125 A2B-6.4mm 2 pcs

C9996565 Washer DIN 9021-6.4mm VZ 14 pcs

KA1070120

KA1070100

KA1070110
