Chapter 7: Systems

318

Part Number Description

Q-ty per

ASSY

Unit

C9997205Q T ﬁtting 1 pcs

C9997205R 6x4 nylon tube 2.6 m

C9997731E Grommet 10 mm 2 pcs

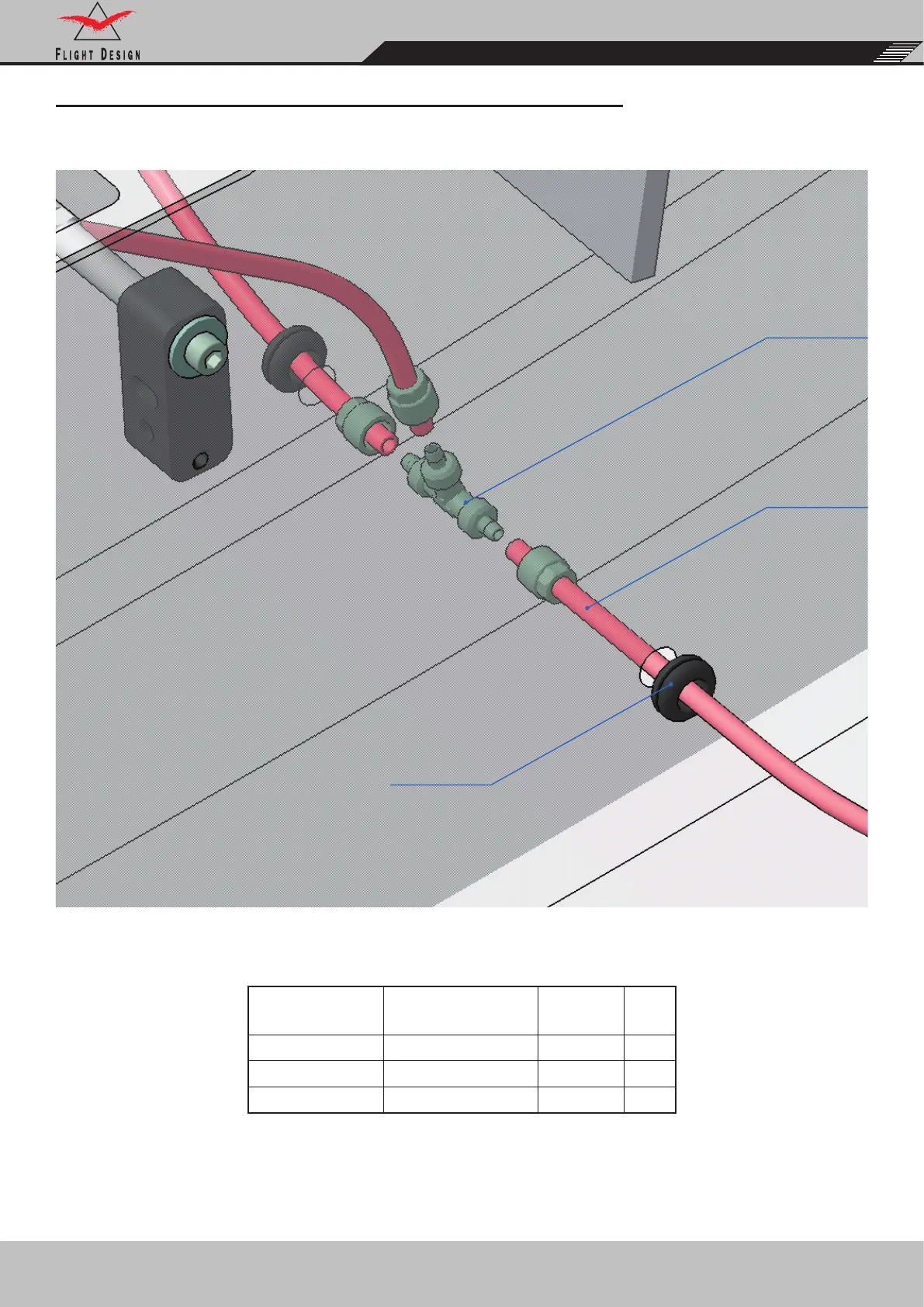

OUTLET BRANCH & BRANCH INSTALLATION IN STREAM DISTRIBUTOR

C9997205Q

C9997731E

C9997205R
